A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. Use thermal tape or a heat sink for efficient heat transfer.
Implement a robust thermal management system, including heat sinks, thermal interfaces, and airflow management. Ensure the device is operated within the recommended temperature range (0°C to 85°C) and consider derating the device for extended temperature ranges.
Handle the device with ESD-protective equipment and follow proper handling procedures. Ensure the device is stored in an ESD-protective package, and use an ESD wrist strap or mat during assembly and testing.
While AFBR-5972Z is designed for IEEE 802.3bt applications, it can be used in other applications with proper design and testing. However, ensure compliance with relevant industry standards and regulations, and consult with Broadcom Limited for specific guidance.
Follow the recommended power-up sequence: VCC, then VEE, then enable the device. For power-down, disable the device, then remove VEE, and finally remove VCC. Ensure a minimum of 10ms delay between power-up and power-down sequences.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFBR-5972Z Overview

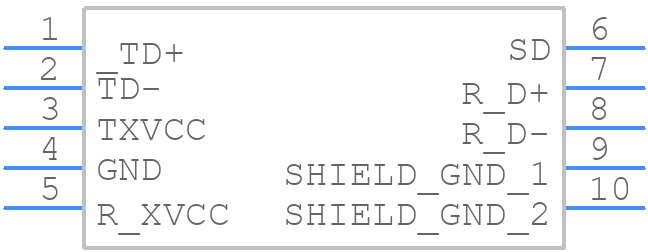

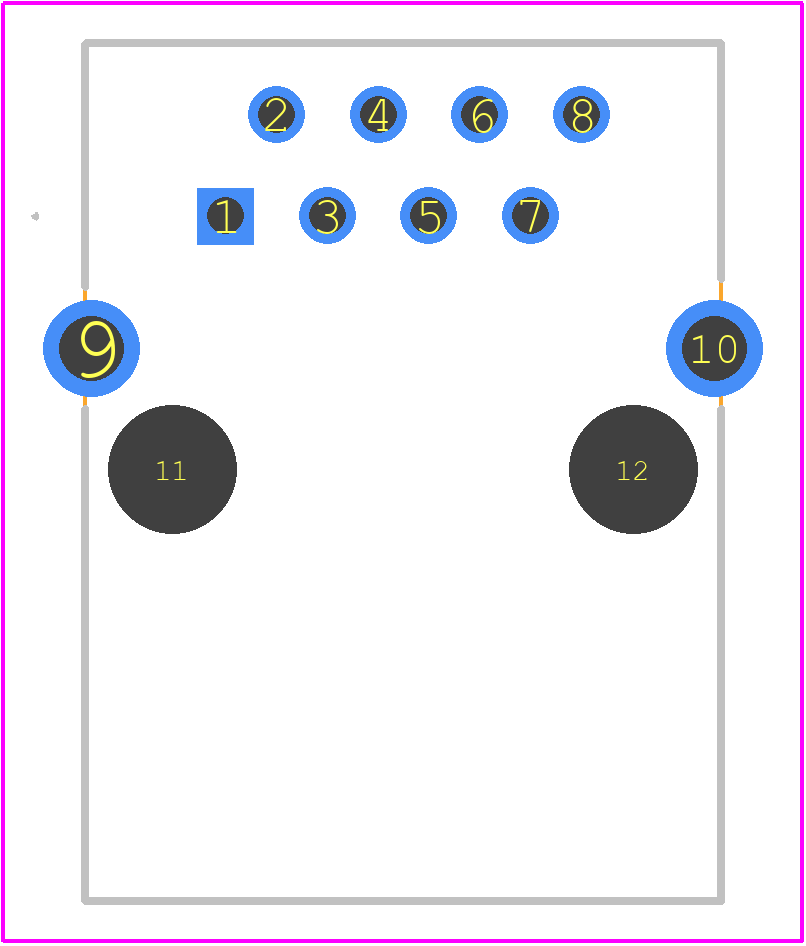

Use the download button to access the AFBR-5972Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFBR-,
or try a keyword search, such as Fiber Optic Transceivers
Suggested Parts
If you searched for AFBR-5972Z, you might also be interested in these parts:
