AFBR-59R5ALZ - Avago Technologies

Description: Digital Diagnostic 2x7 SFF 850 nm 4.25/2.125/1.0625 GBd, RoHS-Compliant Optical Transceiver

Download AFBR-59R5ALZ Model

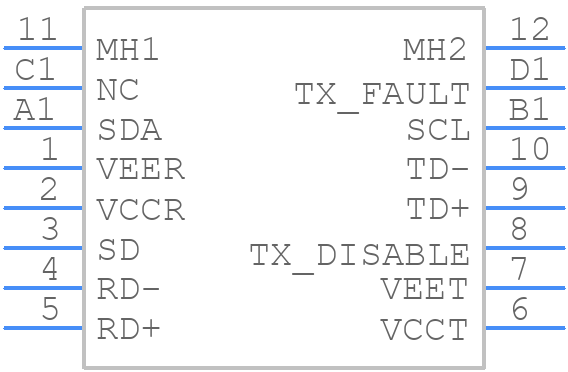

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

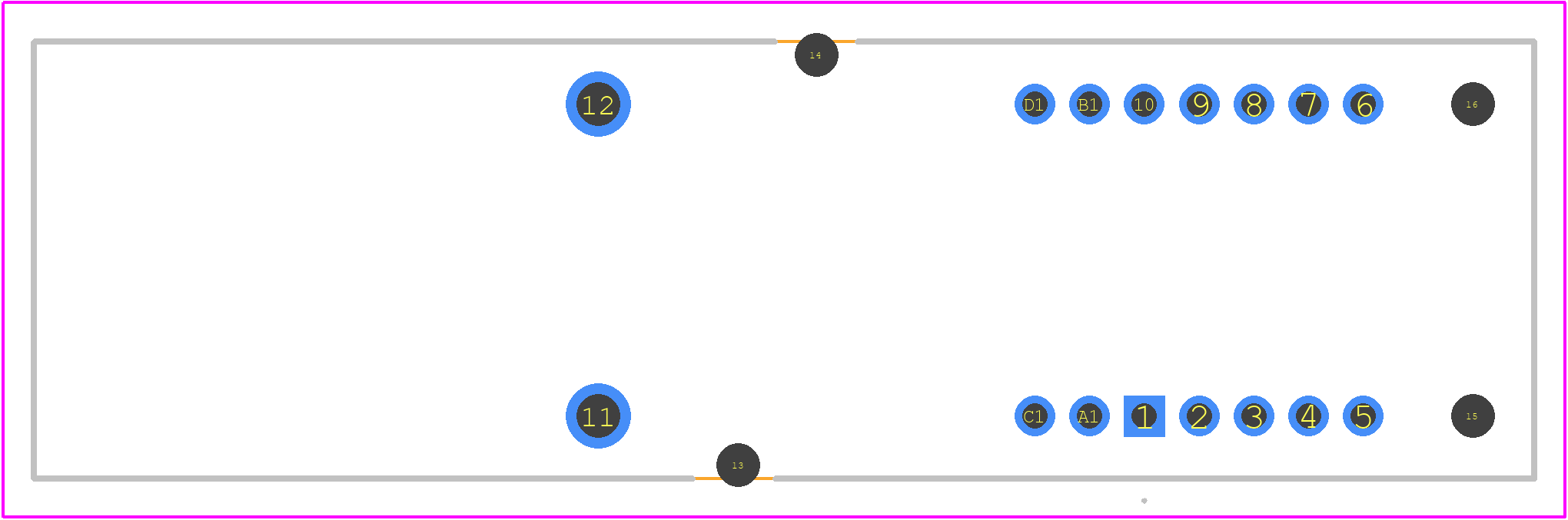

PCB Footprints
AFBR-59R5ALZ - Avago Technologies PCB footprint - Other - Other - AFBR-59R5ALZ-5
click to zoom
3D Models
AFBR-59R5ALZ - Avago Technologies  - 3D model - Other - AFBR-59R5ALZ-5
click to zoom

AFBR-59R5ALZ Details

  • Manufacturer Part Number:

    AFBR-59R5ALZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    0

  • Body Breadth:

    13.59 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    48.1 mm

  • Built-in Feature:

    AMPLIFIER

  • Communication Standard:

    GBE

  • Connection Type:

    LC CONNECTOR

  • Data Rate (Rx):

    4250 Mbps

  • Data Rate (Tx):

    4250 Mbps

  • Emitter/Detector Type:

    LASER DIODE, PIN PHOTODIODE

  • Fiber Optic Device Type:

    TRANSCEIVER

  • Fiber Type:

    50/125, 62.5/125, MMF

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Operating Wavelength-Max:

    860 nm

  • Operating Wavelength-Min:

    830 nm

  • Operating Wavelength-Nom:

    850 nm

  • Optical Power Output-Nom:

    0.125 mW

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

AFBR-59R5ALZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal reflections.
  • Ensure good thermal conductivity by using a heat sink or thermal pad, and follow the recommended operating temperature range of -40°C to 85°C. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum cable length supported is 100 meters, but this can vary depending on the specific application and cable type. It's recommended to consult the datasheet and perform signal integrity simulations to determine the optimal cable length for your specific use case.
  • Yes, the AFBR-59R5ALZ can be used in redundant or duplicated systems, but it's essential to ensure that the devices are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and verify that they are within the specified parameters. Check the power supply voltage, signal integrity, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guidelines.
