AFE4403YZPT - Texas Instruments

Description: Analogue Front-End 22Bit ADC LED DSBGA36 AFE4403YZPT, Analogue Front End IC, 1-channel 22 bit Serial-SPI, 36-Pin DSBGA

Download AFE4403YZPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

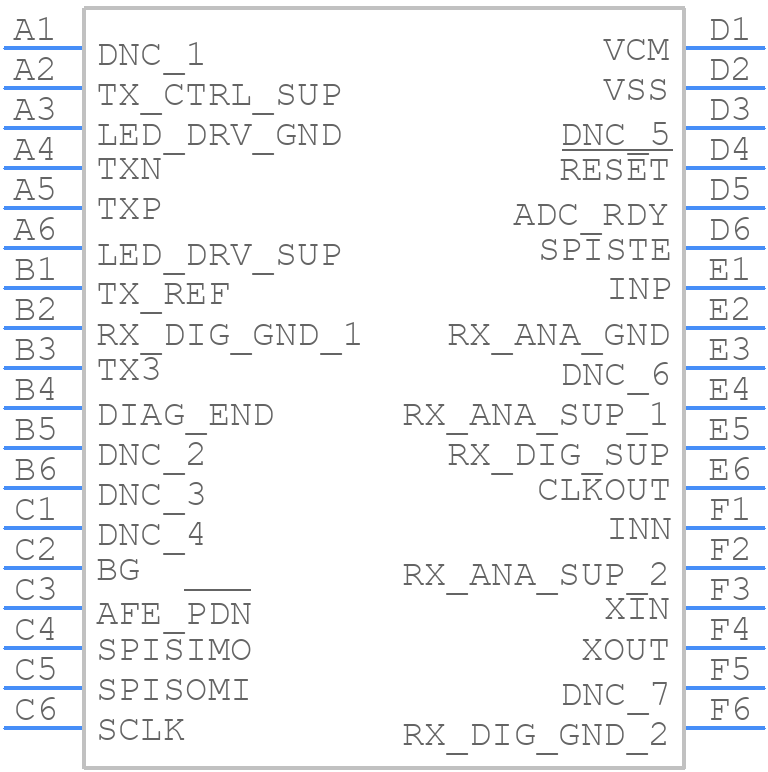

AFE4403YZPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AFE4403YZPT - Texas Instruments PCB footprint - BGA - BGA - YZP0036
click to zoom
3D Models
AFE4403YZPT - Texas Instruments - 3D model - BGA - YZP0036
click to zoom

AFE4403YZPT Details

  • Manufacturer Part Number:

    AFE4403YZPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    36

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XBGA-B36

  • JESD-609 Code:

    e1

  • Length:

    3.04 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.04 mm

AFE4403YZPT Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the AFE4403YZPT. TI recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital sections separate. Also, ensure that the analog and digital power supplies are decoupled.
  • To optimize the AFE4403YZPT's performance, you need to consider factors like signal bandwidth, gain, and noise floor. TI provides an optimization guide in the datasheet, and you can also use the WEBENCH Filter Designer tool to help you optimize the device for your specific application.
  • The AFE4403YZPT can handle input voltages up to ±650mV. However, it's recommended to limit the input voltage to ±500mV to ensure optimal performance and to prevent damage to the device.
  • The AFE4403YZPT has a programmable gain amplifier (PGA) that can be configured for different gain settings. You can use the SPI interface to program the PGA gain, and TI provides a gain configuration table in the datasheet to help you select the right gain setting for your application.
  • The power consumption of the AFE4403YZPT depends on the operating mode and the clock frequency. In low-power mode, the device consumes around 12mW, while in high-speed mode, it consumes around 30mW. You can refer to the datasheet for more detailed power consumption information.
