A good PCB layout for the AFE5818ZBV involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. TI provides a recommended PCB layout in the datasheet and application notes.
Optimizing the AFE5818ZBV's performance involves selecting the right gain settings, filter configurations, and clock frequencies for your specific application. TI provides application notes and evaluation modules to help with this process.
To mitigate EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke on the analog inputs, and ensure good PCB layout practices. TI provides guidelines for EMI and RFI mitigation in the datasheet and application notes.
To troubleshoot issues with the AFE5818ZBV, start by checking the power supply, clock, and reference voltage connections. Then, verify the analog input signal quality and check for noise sources in the system. Use TI's troubleshooting guides and application notes for further assistance.
The AFE5818ZBV has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pads on the package. TI provides thermal management guidelines in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE5818ZBV Overview

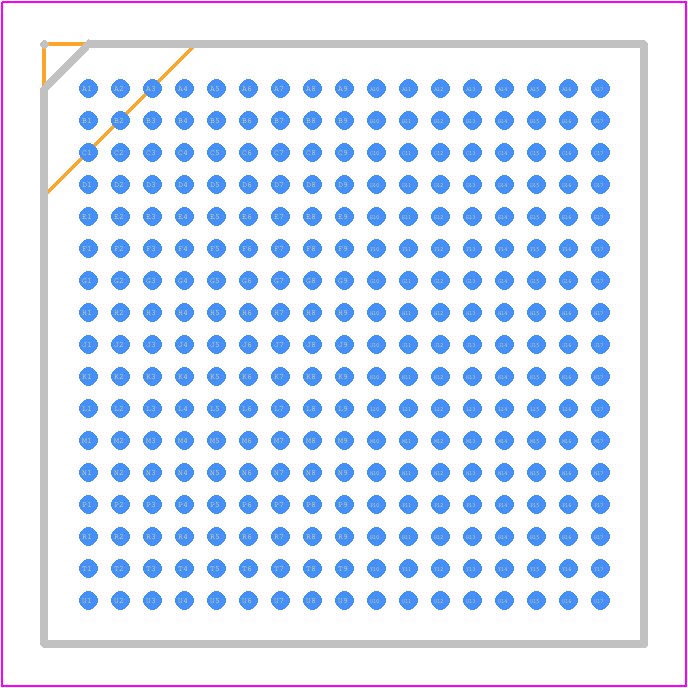

Use the download button to access the AFE5818ZBV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE58,
or try a keyword search, such as Other Signal Circuits
