AFE8221IRFPQ1 - Texas Instruments

Description: Automotive Catalog Dual IF Interface for Digital Radio

Download AFE8221IRFPQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFE8221IRFPQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

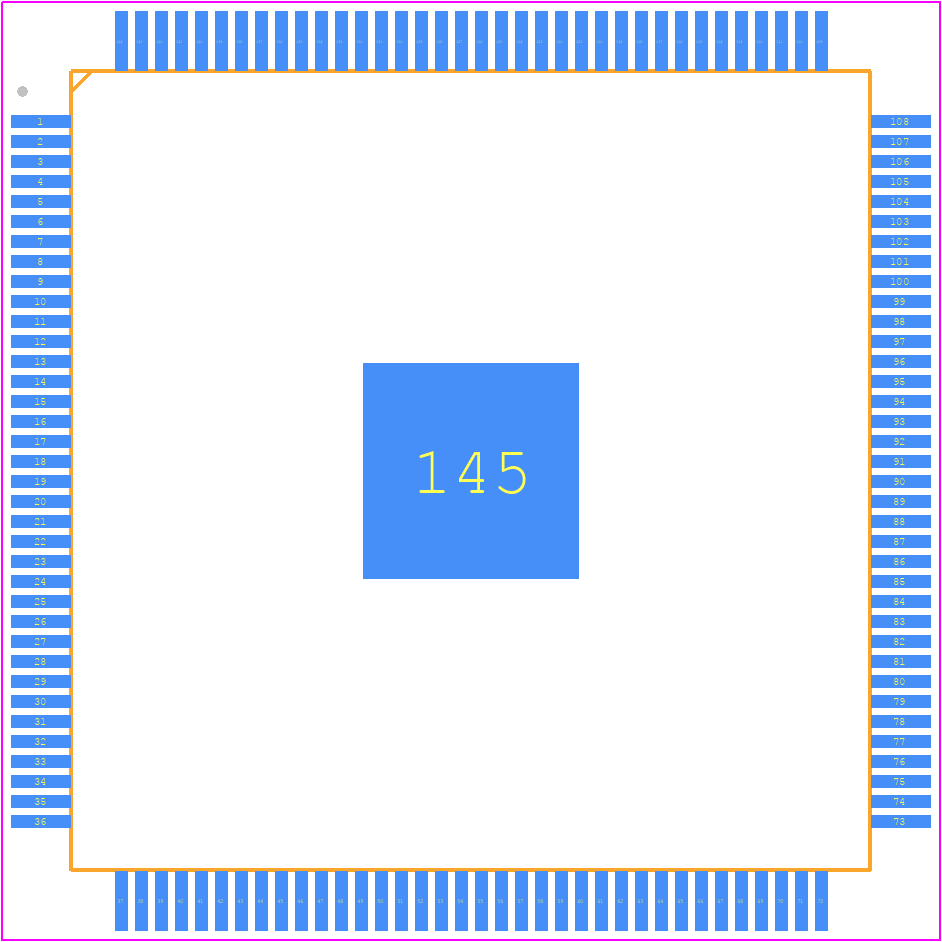

AFE8221IRFPQ1 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - RFP (S-PQFP-G144
click to zoom
3D Models
AFE8221IRFPQ1 - Texas Instruments - 3D model - Quad Flat Packages - RFP (S-PQFP-G144
click to zoom

AFE8221IRFPQ1 Details

  • Manufacturer Part Number:

    AFE8221IRFPQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Construction:

    COMPONENT : ADC; DEMOD; IFF; MIX

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TQFP144,.87SQ,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    DIGITAL RF TRANSCEIVER

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

AFE8221IRFPQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AFE8221IRFPQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and shielding to minimize noise and EMI.
  • Texas Instruments offers a range of tools and resources, including the AFE8221IRFPQ1 EVM, software development kits (SDKs), and application notes, to help optimize the performance of the device in specific applications. Engineers can also consult with TI's technical support team for customized guidance.
  • The AFE8221IRFPQ1 has a maximum junction temperature of 150°C. Engineers should ensure proper thermal management by providing adequate heat sinking, airflow, and thermal interface materials to prevent overheating and ensure reliable operation.
  • The AFE8221IRFPQ1 is not specifically designed or qualified for radiation-hardened or high-reliability applications. Engineers should consult with Texas Instruments' sales and technical teams to discuss potential alternatives or custom solutions for such applications.
  • The AFE8221IRFPQ1 has built-in fault detection mechanisms, such as over-temperature detection and ADC error detection. Engineers should consult the datasheet and application notes for more information on potential failure modes and fault detection mechanisms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFE8221IRFPQ1 Overview

Use the download button to access the AFE8221IRFPQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE82, or try a keyword search, such as Other RF/Microwave Devices
