AFII-LW-0016 - ABRACON

Description: 5.662GHz Frequency Wireless RF SAW Filter (Surface Acoustic Wave) 3dB 345MHz Bandwidth 12-SMD, No Lead -40 to +105 °C

Download AFII-LW-0016 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AFII-LW-0016 model

Email notifications will be applied after download.

Send part feedback

Symbol

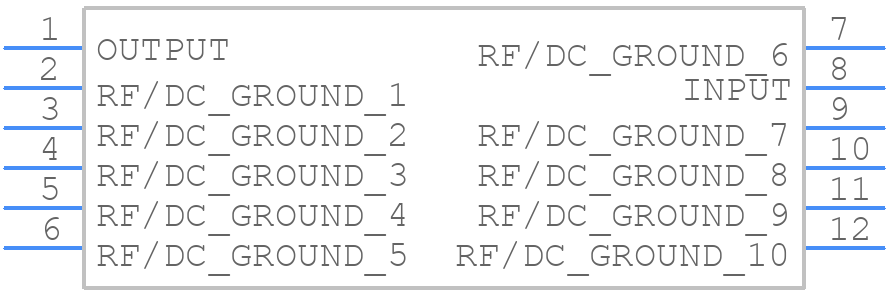

AFII-LW-0016 - ABRACON - PCB symbol

PCB Footprints

AFII-LW-0016 - ABRACON PCB footprint - Other - Other - 1.8 x 1.4 x 0.65 mm

3D Models

AFII-LW-0016 - ABRACON - 3D model - Other - 1.8 x 1.4 x 0.65 mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for AFII-LW-0016
Part Number AFII-LW-0016
Manufacturer ABRACON
Pin Count 12
Part Category Filter
Package Category Other
Footprint Name Other - 1.8 x 1.4 x 0.65 mm
Released Date Dec 20, 2025
Last Modified Date Feb 3, 2026 10:08 AM UTC
Pinout / Pin List Click Here (Member Only)

AFII-LW-0016 Details

Manufacturer Part Number:
AFII-LW-0016
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
Filter Type:
SAW FILTER

Trust Checks

Community Provided

System Verified

Community Approved

AFII-LW-0016 Overview

Use the download button to access the AFII-LW-0016 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AFII-, or try a keyword search, such as SAW Filters
