AG02P-5 footprint, schematic symbol and 3D model by XP POWER

Symbol

click to zoom

PCB Footprints

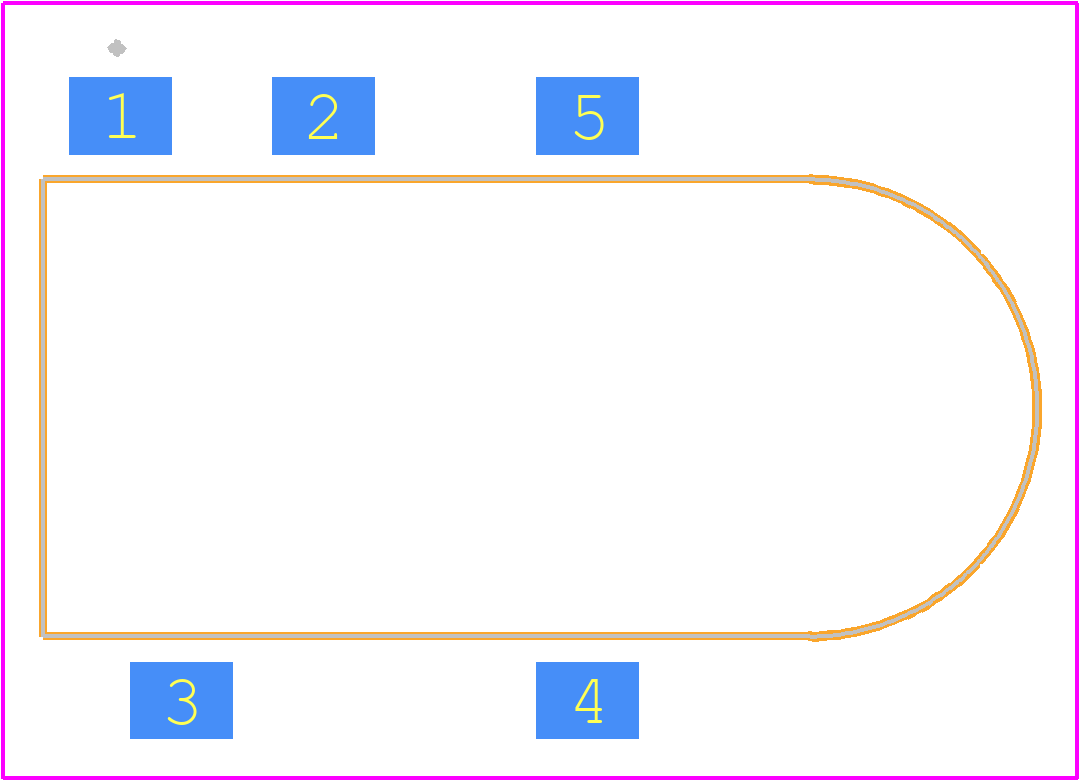

AG02P-5 - XP POWER PCB footprint - Other - Other - AG02P-5-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG02P-5
Part Number AG02P-5
Manufacturer XP POWER
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - AG02P-5-3
Released Date Jul 29, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AG02P-5 Details

Manufacturer Part Number:
AG02P-5
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
XP Power
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE

AG02P-5 Frequently Asked Questions (FAQs)

The AG02P-5 can operate from -20°C to +70°C, with derating above 50°C.
Yes, the AG02P-5 is certified for use in Class I, Division 2 hazardous locations, making it suitable for use in explosive atmospheres.
The AG02P-5 has a calculated MTBF of 550,000 hours, indicating high reliability and long lifespan.
Yes, the AG02P-5 meets the requirements of IEC 60601-1, making it suitable for use in medical applications.
Yes, the AG02P-5 can operate up to 5,000 meters (16,400 feet) above sea level, making it suitable for use in high-altitude applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

AG02P-5 Overview

Use the download button to access the AG02P-5 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AG02P, or try a keyword search, such as Power Supply Modules
