AG1Y052 - Panasonic

Description: Compact Flat type Safety relay compliant with European safety standards

Download AG1Y052 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1Y052 model

Email notifications will be applied after download.

Send part feedback

Symbol

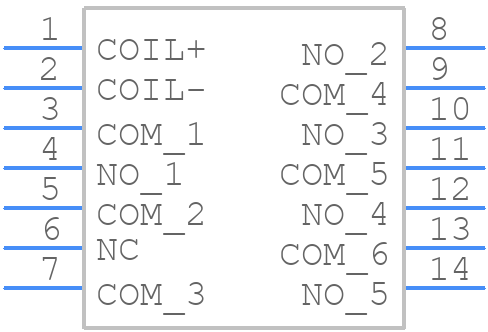

AG1Y052 - Panasonic - PCB symbol

PCB Footprints

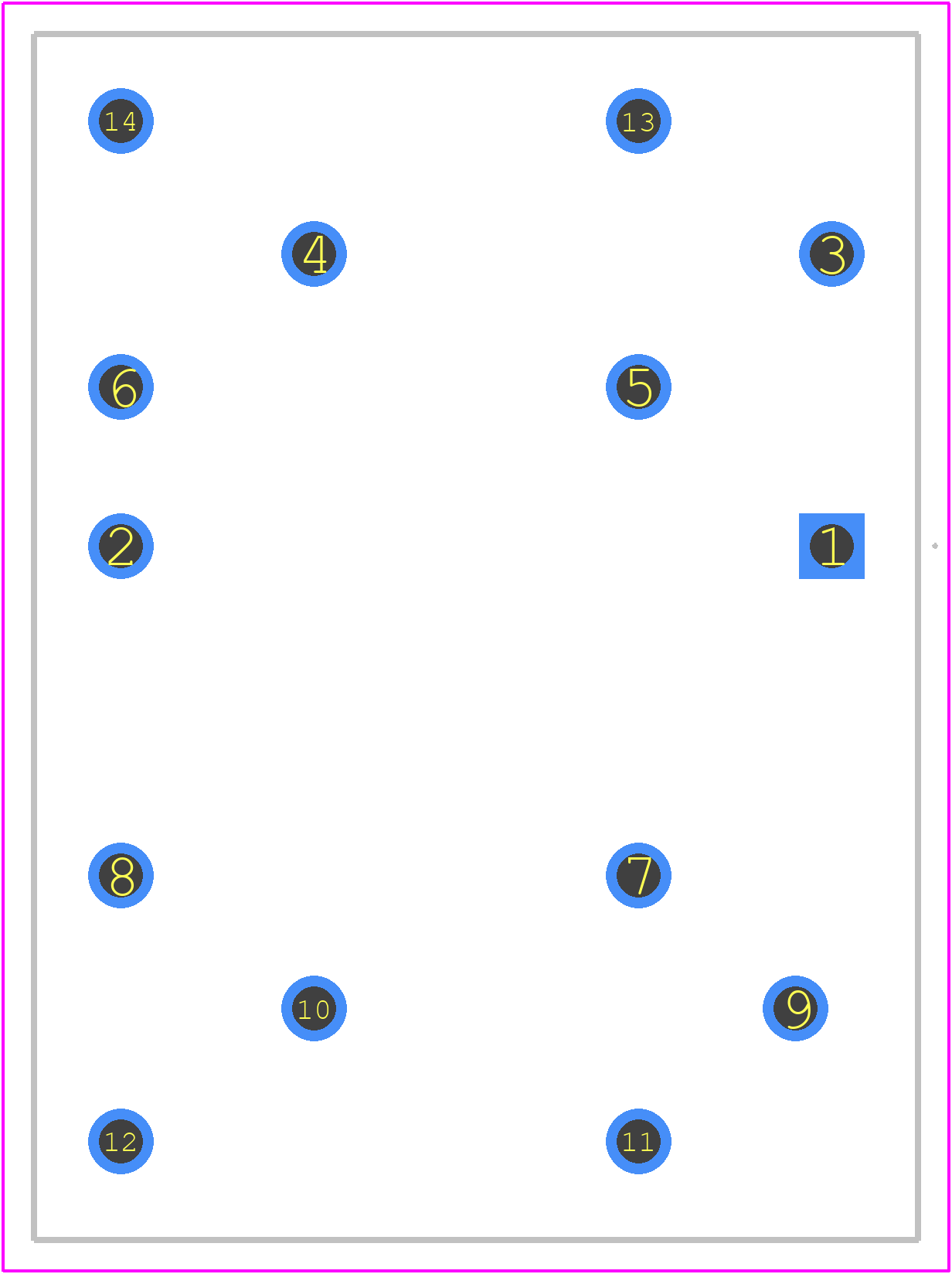

AG1Y052 - Panasonic PCB footprint - Other - Other - SFY5-DC24V-1

3D Models

AG1Y052 - Panasonic - 3D model - Other - SFY5-DC24V-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1Y052
Part Number AG1Y052
Manufacturer Panasonic
Pin Count 14
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFY5-DC24V-1
Released Date Oct 16, 2025
Last Modified Date Jan 21, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

AG1Y052 Details

Manufacturer Part Number:
AG1Y052
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Relay Type:
SAFETY RELAY
