The maximum capacitance load for the AG30P-12 is 0.1uF to 10uF, depending on the input voltage and output voltage. It's recommended to consult the application notes or contact XP Power for specific guidance.
The AG30P-12 has a maximum operating temperature of 80°C, with derating required above 60°C. It's essential to ensure the device is used within its specified temperature range to maintain reliability and performance.
The AG30P-12 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's crucial to review the specific certification requirements for your application and ensure the device meets those standards.
XP Power provides recommended layout and spacing guidelines in the application notes or datasheet. It's essential to follow these guidelines to ensure proper thermal performance, EMI reduction, and reliability.
Yes, the AG30P-12 can be used in a redundant or parallel configuration, but it's essential to consult the application notes or contact XP Power for specific guidance on the recommended configuration and design considerations.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AG30P-12 Overview

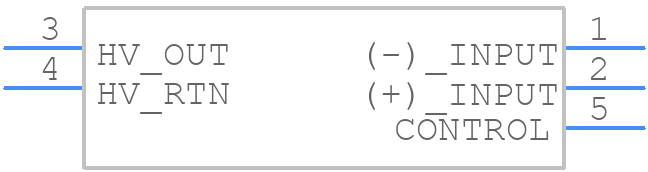

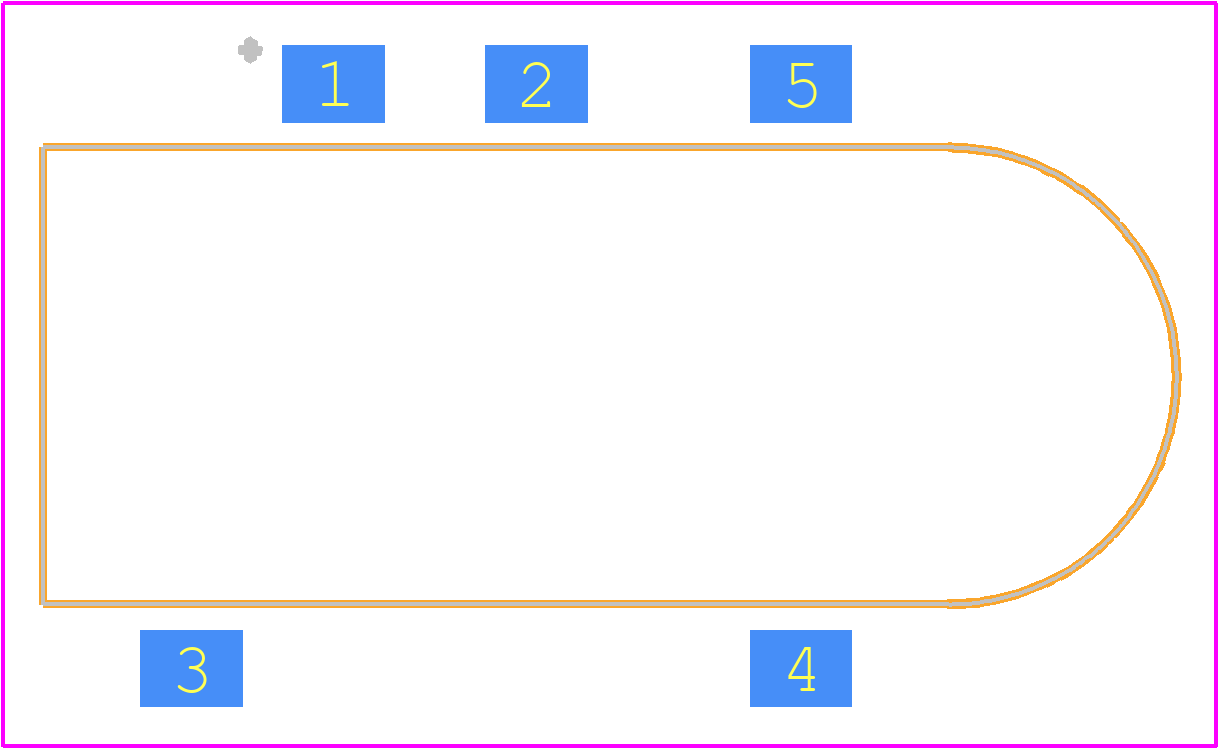

Use the download button to access the AG30P-12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AG30P,
or try a keyword search, such as Power Supply Modules
