AG30P-5 footprint, schematic symbol and 3D model by XP POWER

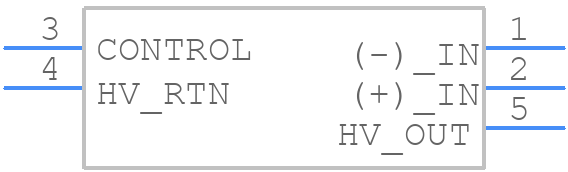

Symbol

click to zoom

PCB Footprints

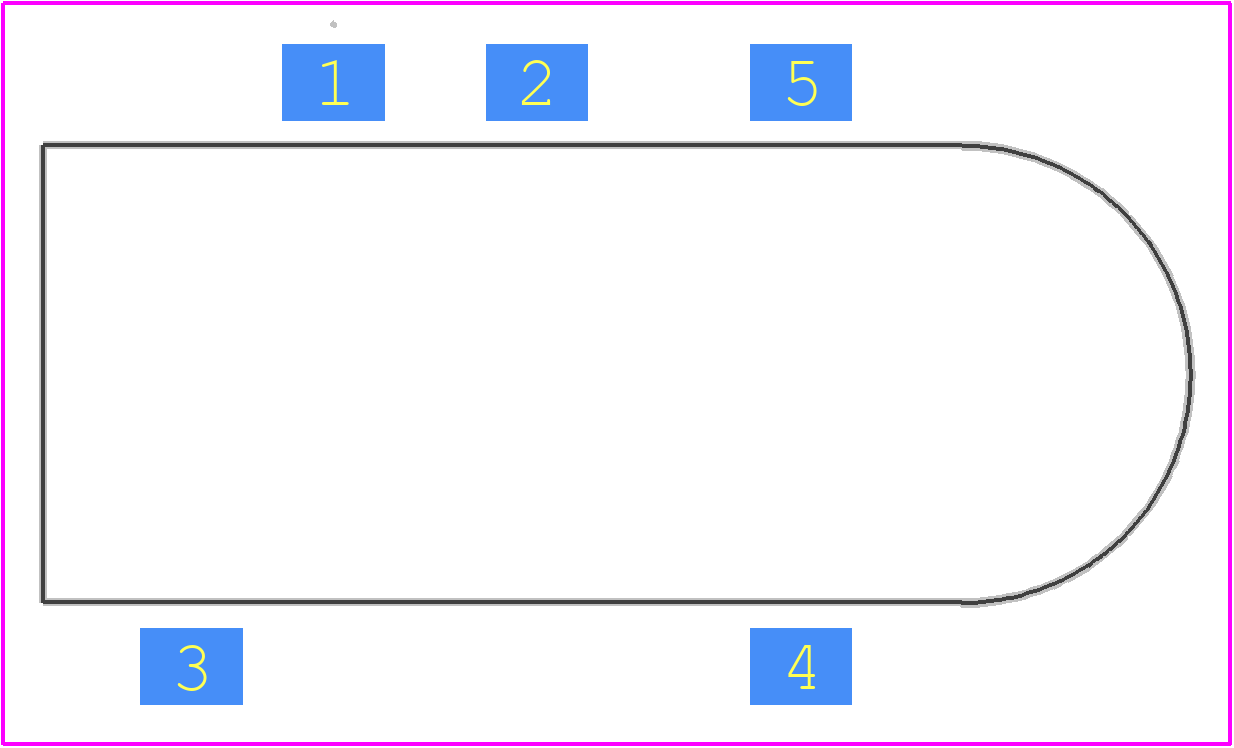

AG30P-5 - XP POWER PCB footprint - Other - Other - 5-SMD_2026

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG30P-5
Part Number AG30P-5
Manufacturer XP POWER
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 5-SMD_2026
Released Date Feb 3, 2026
Last Modified Date Feb 3, 2026 2:01 PM UTC
Pinout / Pin List Click Here (Member Only)

AG30P-5 Details

Manufacturer Part Number:
AG30P-5
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
XP Power
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE

AG30P-5 Frequently Asked Questions (FAQs)

The AG30P-5 can operate from -20°C to +70°C, with derating above 50°C.
Yes, the AG30P-5 is designed to operate up to 5,000 meters (16,400 ft) above sea level.
The AG30P-5 has a typical efficiency of 85% at 230VAC input and 75% load.
Yes, the AG30P-5 can be used in a redundant configuration, but it requires an external ORing diode and a suitable control circuit.
The AG30P-5 can handle a maximum capacitance load of 10,000 μF.

Trust Checks

Community Provided

System Verified

Community Approved

AG30P-5 Overview

Use the download button to access the AG30P-5 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AG30P, or try a keyword search, such as Power Supply Modules
