- Part Number AG9805M
- Manufacturer Silvertel
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SMD4
- Released Date Jan 22, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AG9805M Details
-
Manufacturer Part Number:
AG9805M
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
SMT-8
-
Country Of Origin:
UK
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Silver Telecom Ltd
-
Adjustable Threshold:
YES
-
Analog IC - Other Type:
PoE POWERED DEVICE CONTROLLER
-
JESD-30 Code:
R-XDMA-L8
AG9805M Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
-
Use a heat sink with a thermal conductivity of at least 1 W/m-K and ensure good airflow around the device. Also, consider using a thermal interface material with a thermal conductivity of at least 5 W/m-K.
-
The maximum cable length for the Ethernet interface is 100 meters (328 feet) for Cat5e or higher cabling, and 80 meters (262 feet) for Cat5 cabling.
-
Yes, the AG9805M supports IEEE 802.3af PoE and can be powered via the Ethernet cable. However, ensure that the PoE injector or switch can provide the required power (up to 15.4W).
-
Use the device's management interface (e.g., Web GUI or CLI) to configure VLAN tagging. Set the VLAN ID, priority, and other parameters according to your network requirements.
Trust Checks
Community Provided
System Verified
Community Approved
AG9805M Overview

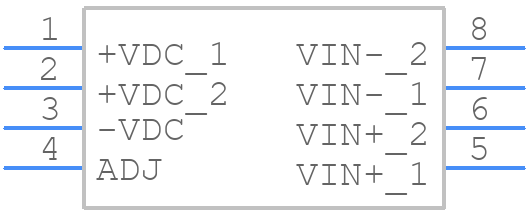

Use the download button to access the AG9805M schematic symbol, PCB footprint, and 3D model.
