AGF-15S12 - Minmax

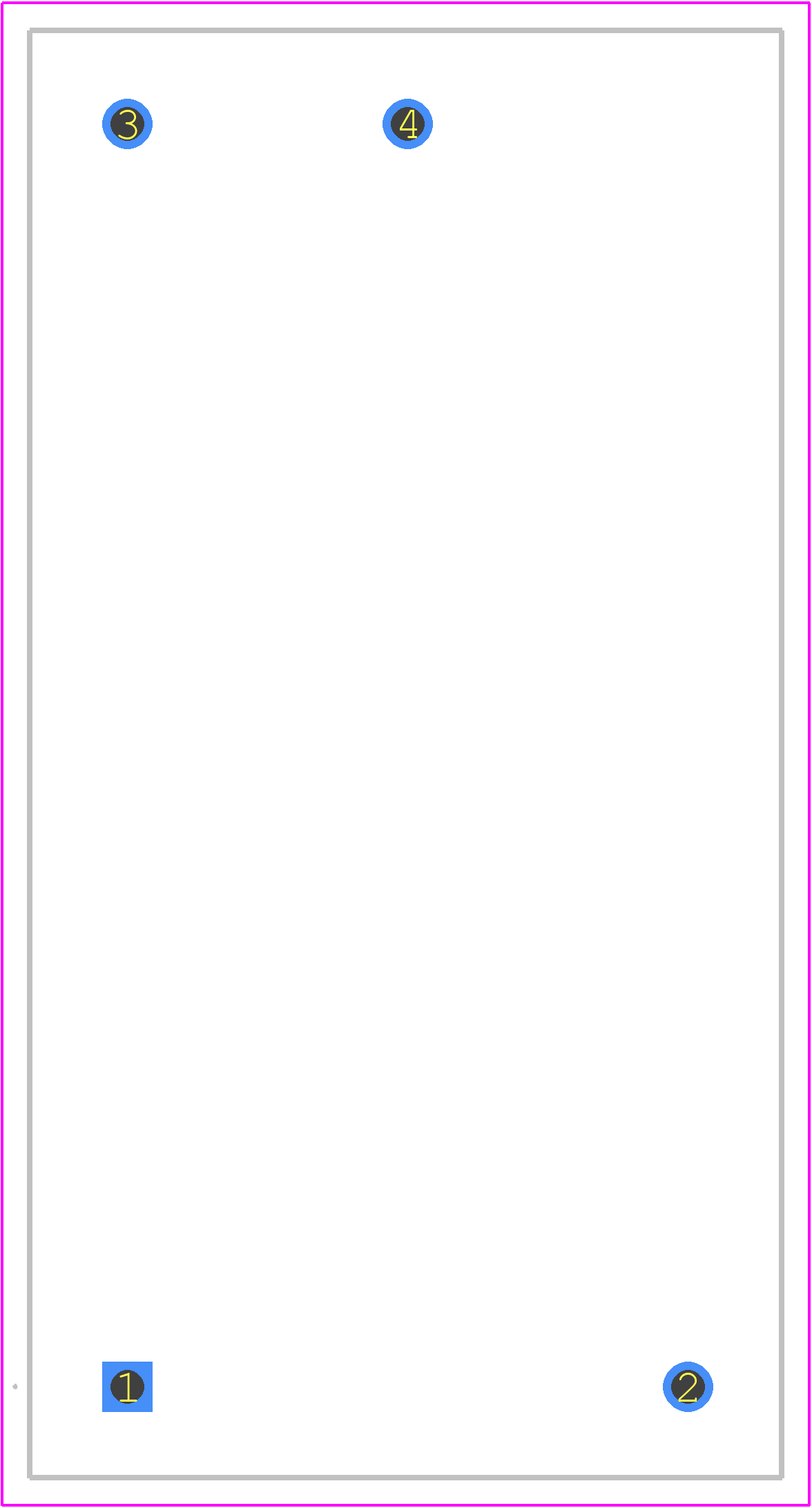

AGF-15S12 Details

• Manufacturer Part Number:

  AGF-15S12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  Module-4

• ECCN Code:

  EAR99

• Manufacturer:

  Minmax Technology Co Ltd

• YTEOL:

  6

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL, CUL, IEC, EN

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  85 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-PDMA-P4

• Length:

  52.4 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  1.25 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  SHORT CIRCUIT; OUTPUT OVER VOLTAGE; OVER LOAD

• Seated Height-Max:

  24 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  115 kHz

• Technology:

  HYBRID

• Terminal Form:

  UNSPECIFIED

• Terminal Position:

  DUAL

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  1 s

• Width:

  27.2 mm
