AGM2222-222ME - COILCRAFT

Description: Power Inductor, shielded, powdered iron, 20% tol, TH, RoHS, halogen-free

Download AGM2222-222ME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AGM2222-222ME - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

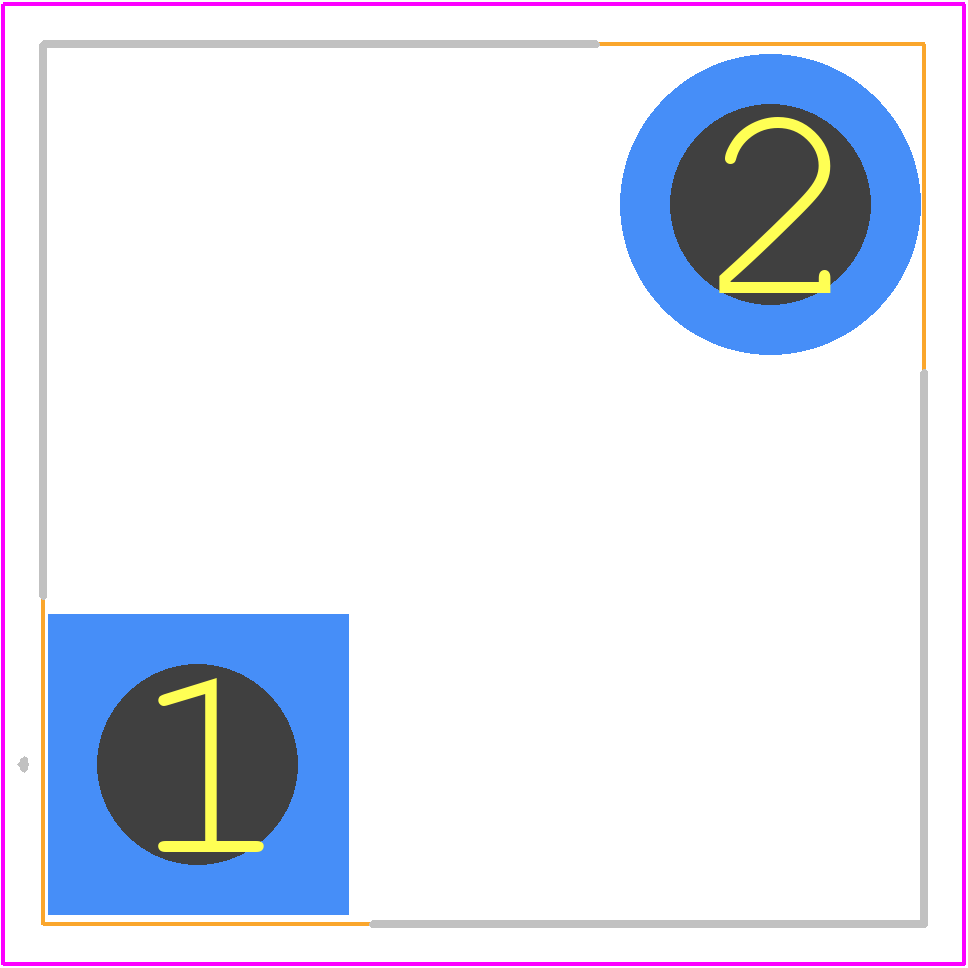

AGM2222-222ME - COILCRAFT PCB footprint - Other - Other - AGM2222-222ME-3
click to zoom
3D Models
AGM2222-222ME - COILCRAFT - 3D model - Other - AGM2222-222ME-3
click to zoom

AGM2222-222ME Details

  • Manufacturer Part Number:

    AGM2222-222ME

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    7.8

  • Construction:

    Rectangular

  • Core Material:

    POWDERED IRON

  • DC Resistance:

    0.0008 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Length:

    3.5 mm

  • Lead Spacing:

    14.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    22 mm

  • Package Length:

    22 mm

  • Package Style:

    Radial

  • Package Width:

    22 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    54 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    62 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

AGM2222-222ME Frequently Asked Questions (FAQs)

  • The recommended land pattern for the AGM2222-222ME is a rectangular pad with a size of 2.2 mm x 2.2 mm, with a non-solder mask defined (NSMD) pad shape. This is specified in the Coilcraft Land Pattern Recommendation document.
  • The AGM2222-222ME is rated for operation up to 125°C, but it's recommended to derate the current rating for temperatures above 85°C. Consult the Coilcraft Temperature Derating Curve for more information.
  • Handle the AGM2222-222ME by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to handle the component. Avoid bending or flexing the leads, and ensure the component is properly seated on the PCB during assembly.
  • The ESR of the AGM2222-222ME is not explicitly stated in the datasheet, but it can be estimated using the Q factor and inductance values. A rough estimate is around 0.1-0.2 ohms. However, for accurate calculations, consult the Coilcraft ESR Calculator tool or contact Coilcraft support.
  • The AGM2222-222ME is designed for general-purpose use and has a self-resonant frequency (SRF) of around 100 MHz. While it can be used in high-frequency applications, it's essential to consider the inductor's impedance characteristics and potential resonance issues. Consult the Coilcraft High-Frequency Inductor Selection Guide for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AGM2222-222ME Overview

Use the download button to access the AGM2222-222ME schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGM22, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
