A good PCB layout for the AGN210A09 should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. Additionally, ensure that the PCB material has a low dielectric constant to minimize signal reflections.
The AGN210A09 has a high power dissipation, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if possible, and consider using thermal vias or thermal pads on the PCB to dissipate heat efficiently.
The recommended input impedance is 50 ohms, and the output impedance is also 50 ohms. However, the device can be matched to other impedance values using external components, such as resistors and inductors.
Yes, the AGN210A09 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper operation and minimize unwanted oscillations.
The maximum safe operating temperature for the AGN210A09 is 150°C. However, it's recommended to operate the device at a temperature below 125°C to ensure reliable operation and minimize degradation over time.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN210A09 Overview

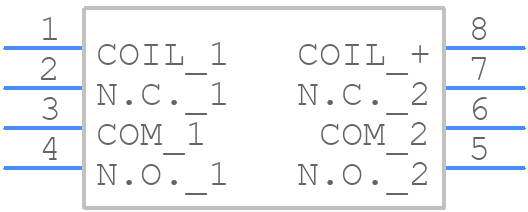

Use the download button to access the AGN210A09 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN21,
or try a keyword search, such as Power/Signal Relays
