A good PCB layout for the AGN210S12 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal design guidelines, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range.
The AGN210S12 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A minimum of 2kV human body model (HBM) and 200V machine model (MM) ESD protection is recommended.
Yes, the AGN210S12 can be used in switching regulator applications. However, it's essential to ensure that the device is operated within its recommended frequency range and that the output is properly filtered to minimize electromagnetic interference (EMI).
To troubleshoot common issues with the AGN210S12, start by verifying the PCB layout and ensuring that the device is properly decoupled. Check for oscillation or instability by monitoring the output with an oscilloscope. If issues persist, consult the datasheet and application notes for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN210S12 Overview

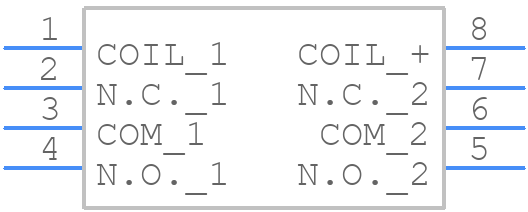

Use the download button to access the AGN210S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN21,
or try a keyword search, such as Power/Signal Relays
