A good PCB layout for the AGN210S12Z should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the AGN210S12Z operates within the SOA, monitor the device's voltage, current, and power dissipation. Use a thermal management system to keep the junction temperature below 150°C. Also, ensure the device is not exposed to excessive voltage or current transients.
For high-power applications, a heat sink with a thermal resistance of less than 10°C/W is recommended. Apply a thermal interface material (TIM) between the device and heat sink. Ensure good airflow around the heat sink, and consider using a fan or other cooling system if necessary.
To minimize EMI, use a shielded enclosure, and keep the AGN210S12Z away from other components that may be susceptible to EMI. Use a common-mode choke or ferrite bead on the input and output lines, and consider adding EMI filters or shielding to the PCB.
Store the AGN210S12Z in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, not the leads, to prevent damage. Use an anti-static wrist strap or mat when handling the device, and avoid touching the leads or pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN210S12Z Overview

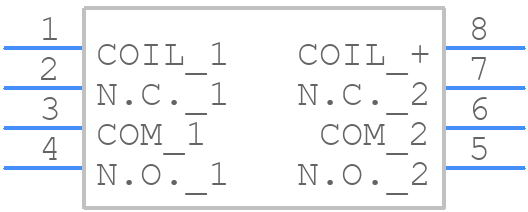

Use the download button to access the AGN210S12Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN21,
or try a keyword search, such as Power/Signal Relays
