Panasonic recommends a 4-layer PCB with a thermal relief pattern on the bottom layer to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow Panasonic's recommended derating guidelines. The device should be derated by 1.25% per degree Celsius above 25°C. Additionally, ensure proper thermal management, and consider using a heat sink or thermal interface material to reduce junction temperature.
Panasonic recommends soldering the AGN260A24 using a reflow soldering process with a peak temperature of 260°C (500°F) for 10-30 seconds. The soldering iron temperature should not exceed 350°C (662°F) for more than 3 seconds. A solder with a melting point of 217°C (423°F) or higher is recommended.
To prevent ESD damage, handle the AGN260A24 with an anti-static wrist strap or mat. Ensure that the PCB and components are properly grounded during assembly. Use ESD-sensitive packaging and storage materials, and follow proper ESD handling procedures during manufacturing and testing.
Store the AGN260A24 in its original packaging or in a dry, cool place with a temperature range of -10°C to 30°C (14°F to 86°F) and humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures during storage and handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN260A24 Overview

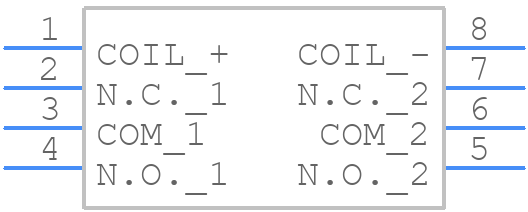

Use the download button to access the AGN260A24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN26,
or try a keyword search, such as Power/Signal Relays
