AGP4233-333ME Frequently Asked Questions (FAQs)

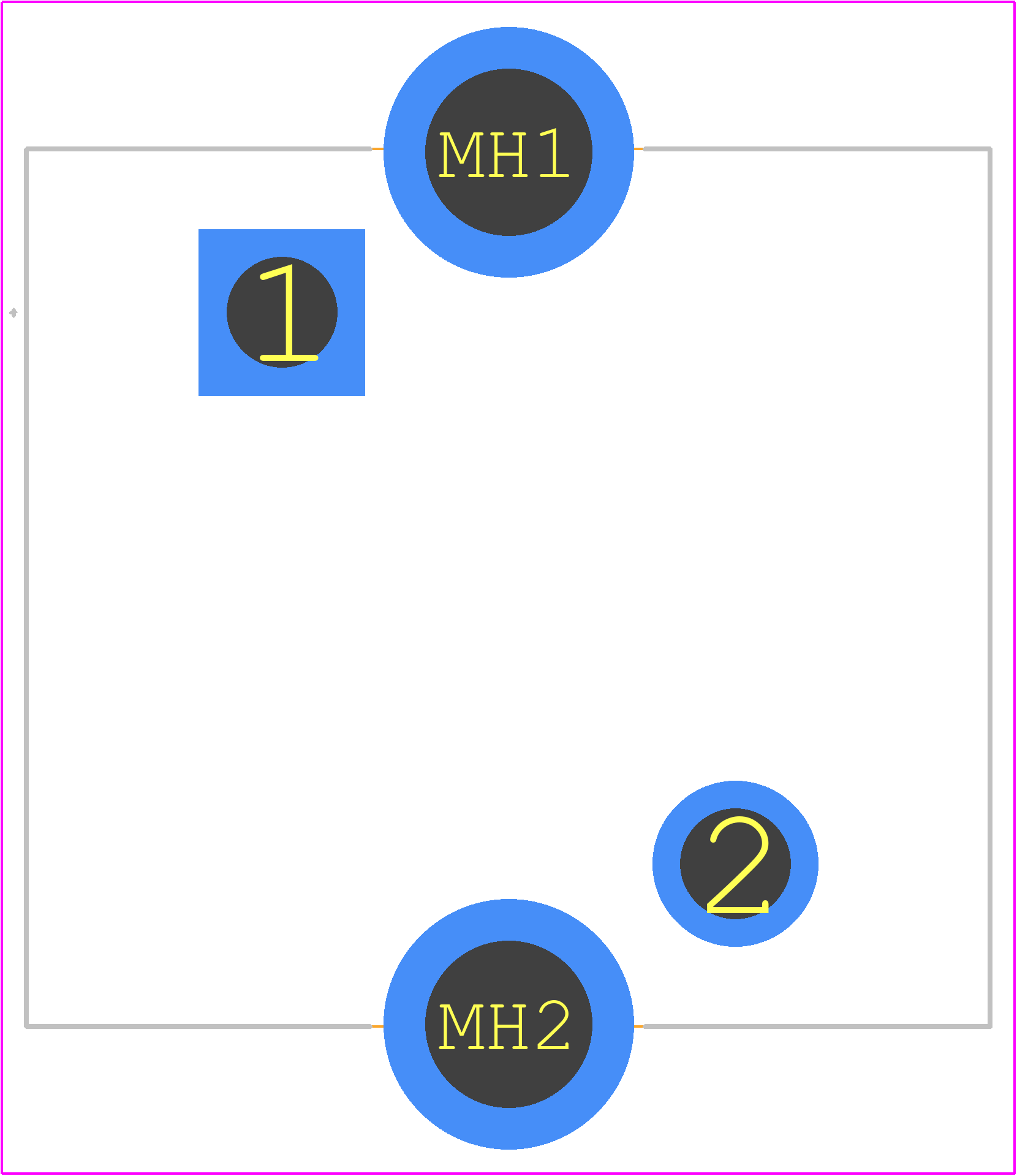

• What is the recommended land pattern for the AGP4233-333ME?
  The recommended land pattern for the AGP4233-333ME can be found in the Coilcraft Land Pattern Recommendation document, which provides a suggested PCB footprint and pad layout for optimal performance and reliability.
• How do I handle the AGP4233-333ME's sensitivity to moisture?
  The AGP4233-333ME is a moisture-sensitive device, and it's essential to follow proper handling and storage procedures to prevent damage. Store the components in a dry, nitrogen-filled package, and avoid exposing them to high humidity or temperature fluctuations during assembly and reflow soldering.
• What is the maximum allowable voltage for the AGP4233-333ME?
  The maximum allowable voltage for the AGP4233-333ME is 50 V. Exceeding this voltage may cause damage to the inductor or affect its performance and reliability.
• Can I use the AGP4233-333ME in a high-temperature environment?
  The AGP4233-333ME is rated for operation up to 125°C. However, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.
• How do I optimize the AGP4233-333ME's performance in a DC-DC converter design?
  To optimize the AGP4233-333ME's performance in a DC-DC converter design, consider the inductor's core material, winding configuration, and operating frequency. Ensure the inductor is properly selected for the specific converter topology, input voltage, and output current requirements.
