Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AGQ-26012
- Part Number AGQ-26012
- Manufacturer Panasonic
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Other

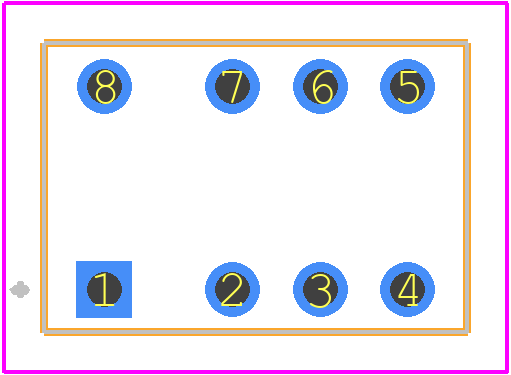

- Footprint Name Other - AGQ26012-1
- Released Date Aug 24, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
AGQ-26012 Details
-
Manufacturer Part Number:
AGQ-26012
-
Manufacturer:
Panasonic Electronic Components
Trust Checks
Expert Contribution
System Verified
Community Approved
AGQ-26012 Overview

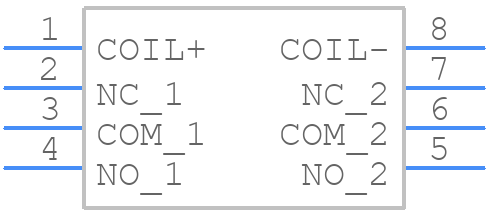

Use the download button to access the AGQ-26012 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AGQ-2,
or try a keyword search, such as Power/Signal Relays
