Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To mitigate inrush current, consider using a soft-start circuit or an NTC thermistor in series with the relay coil. This helps reduce the inrush current and prevents voltage drops.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV. Exceeding this value may lead to contact degradation or failure.
While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.
To ensure EMC, follow proper PCB layout and shielding guidelines, use a common-mode choke or ferrite bead on the relay coil, and consider adding a snubber circuit to reduce EMI emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGQ200A12Z Overview

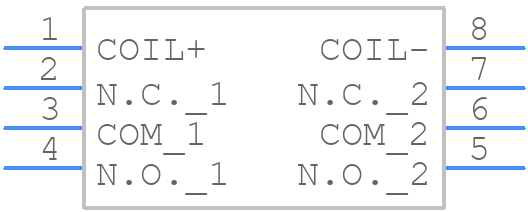

Use the download button to access the AGQ200A12Z schematic symbol, PCB footprint, and 3D model.
