Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting to reduce the inrush current.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this voltage drop can lead to contact welding or other reliability issues. Ensure that the relay is operated within the specified voltage range and that the contact resistance is within the recommended limits.
While the AGQ20TA24X relay has a high operating temperature range, it's essential to consider the derating factors and ensure that the relay is operated within the specified temperature range. Additionally, consider the relay's power dissipation and heat generation when designing the system.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing track lengths, and using shielding or filtering components as needed. Additionally, consider the relay's electromagnetic emissions and susceptibility when designing the system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGQ20TA24X Overview

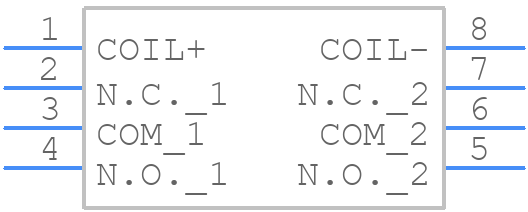

Use the download button to access the AGQ20TA24X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGQ20,
or try a keyword search, such as Power/Signal Relays
