Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
To handle the high inrush current, it's recommended to use a suitable current limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting features.
The maximum allowable voltage drop across the relay contacts is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the voltage drop below 100 mV to ensure reliable contact performance and to prevent excessive heating.
While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking and airflow to prevent overheating and premature failure.
To ensure reliable operation in high-vibration or shock-prone environments, consider using a relay with a higher vibration rating or adding mechanical dampening or shock-absorbing materials to the PCB or relay assembly. Additionally, ensure proper soldering and mechanical fastening of the relay to the PCB.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGQ20TS24X Overview

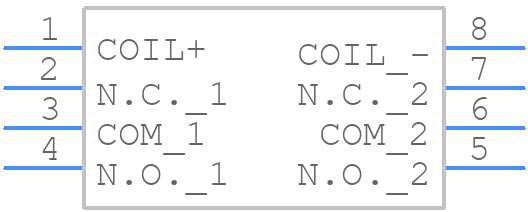

Use the download button to access the AGQ20TS24X schematic symbol, PCB footprint, and 3D model.
