Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and to prevent damage to the relay.
To handle the high inrush current, it's recommended to use a suitable current limiting resistor, inrush current limiter, or a soft-start circuit. Additionally, ensure that the power supply can handle the inrush current, and consider using a relay with a built-in inrush current limiting feature.
The maximum allowable voltage drop across the relay contacts is typically specified as 100 mV to 200 mV. Exceeding this value can lead to contact degradation and reduced relay lifespan. Ensure that the relay is operated within the recommended voltage range and that the contact resistance is monitored.
To ensure reliable relay operation in high-temperature environments, follow Panasonic's recommended temperature derating guidelines, ensure proper heat sinking, and consider using relays with high-temperature ratings. Additionally, monitor the relay's temperature and adjust the operating conditions accordingly.
Panasonic recommends following the standard soldering conditions for surface-mount devices, including a peak temperature of 260°C, a soldering time of 3-5 seconds, and a soldering iron temperature of 350°C to 370°C. Ensure that the soldering process is controlled and monitored to prevent damage to the relay.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGQ20TS4HX Overview

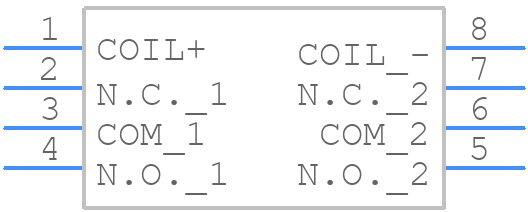

Use the download button to access the AGQ20TS4HX schematic symbol, PCB footprint, and 3D model.
