Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting to reduce the inrush current.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this voltage drop can lead to contact degradation and reduced relay lifespan. Ensure that the relay is operated within the recommended voltage range and that the contact resistance is monitored regularly.
While the AGQ260A24 has a high operating temperature range, it's essential to consider the relay's derating curves and thermal management when operating in high-temperature environments. Ensure that the relay is properly heat-sinked, and the ambient temperature is within the recommended range to prevent overheating and reduced relay lifespan.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing track lengths, and using shielding or filtering components as needed. Additionally, consider using a relay driver with built-in EMC protection features, such as overcurrent protection and electromagnetic interference (EMI) filtering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGQ260A24 Overview

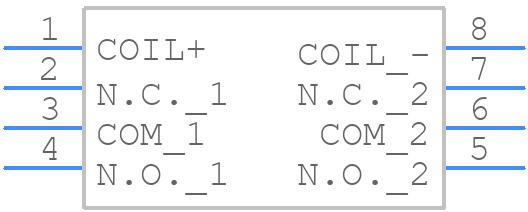

Use the download button to access the AGQ260A24 schematic symbol, PCB footprint, and 3D model.
