AHA0810220M063R - Kyocera AVX

Description: Aluminum Electrolytic Capacitors - SMD 22UF 63V ESR=40

Download AHA0810220M063R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AHA0810220M063R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

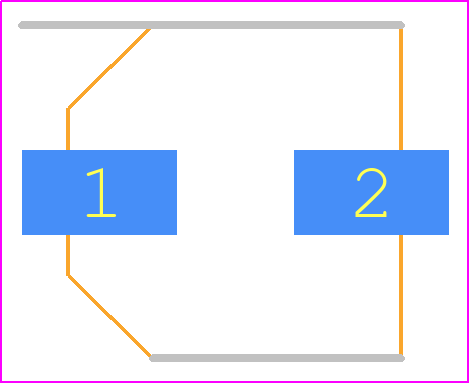

AHA0810220M063R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 0810
click to zoom
3D Models
AHA0810220M063R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - 0810
click to zoom

AHA0810220M063R Details

  • Manufacturer Part Number:

    AHA0810220M063R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    40 mΩ

  • Height:

    10.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.014 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    75 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

AHA0810220M063R Frequently Asked Questions (FAQs)

  • The recommended land pattern for AHA0810220M063R can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout, size, and spacing for optimal performance and reliability.
  • The AHA0810220M063R is designed to provide excellent high-frequency noise suppression and EMI filtering capabilities due to its unique internal construction and materials. However, for optimal performance, it's recommended to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding where necessary.
  • The AHA0810220M063R has a maximum operating temperature of 125°C, making it suitable for most industrial and commercial applications. However, for high-temperature applications above 125°C, it's recommended to consult with Kyocera AVX Components' application engineers to determine the best solution.
  • The typical lead time and availability for AHA0810220M063R can vary depending on the region, distributor, and quantity required. It's recommended to check with authorized distributors or Kyocera AVX Components' sales representatives for the most up-to-date information.
  • Yes, the AHA0810220M063R requires proper handling and storage to prevent damage and ensure reliability. It's recommended to follow standard ESD handling practices, store the components in a dry, cool environment, and avoid exposing them to mechanical stress or extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AHA0810220M063R Overview

Use the download button to access the AHA0810220M063R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHA08, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
