AHA1010151M035R - Kyocera AVX

Description: 150 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 23mOhm 10000 Hrs @ 105°C

Download AHA1010151M035R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AHA1010151M035R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

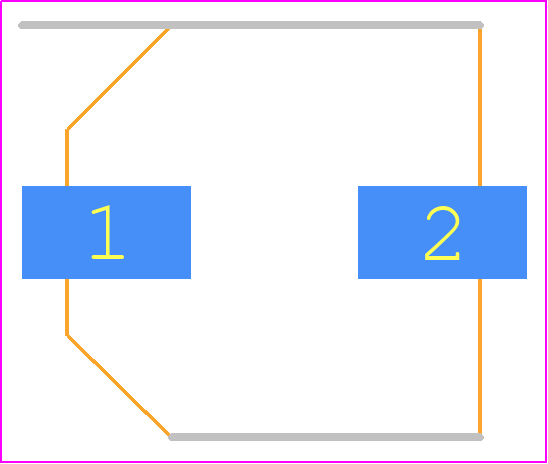

AHA1010151M035R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - CASE CODE 1010
click to zoom
3D Models
AHA1010151M035R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - CASE CODE 1010
click to zoom

AHA1010151M035R Details

  • Manufacturer Part Number:

    AHA1010151M035R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    23 mΩ

  • Height:

    10.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.053 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    240 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

AHA1010151M035R Frequently Asked Questions (FAQs)

  • The recommended land pattern for AHA1010151M035R can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the AHA1010151M035R is rated for operation up to 125°C, it's essential to consider the specific application requirements and potential derating factors. Engineers should consult with Kyocera AVX Components' application notes and thermal management guidelines to ensure the component can operate reliably within the desired temperature range.
  • To prevent damage and ensure reliability, engineers should follow proper handling and assembly procedures, such as using ESD protection, avoiding excessive mechanical stress, and following recommended soldering profiles. Kyocera AVX Components may provide additional guidelines or recommendations for specific assembly and rework processes.
  • The lifespan of AHA1010151M035R depends on various factors, including operating conditions, environmental factors, and quality of the component. While Kyocera AVX Components may provide general guidelines on the component's reliability and lifespan, engineers should consult with their specific application requirements and perform their own reliability testing to determine the expected lifespan.
  • The AHA1010151M035R may not be AEC-Q200 qualified by default. Engineers should check with Kyocera AVX Components to determine if the component meets the required automotive standards and if any additional testing or certification is necessary for their specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AHA1010151M035R Overview

Use the download button to access the AHA1010151M035R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHA10, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
