AHA1012560M063R - Kyocera AVX

Description: Aluminum Electrolytic Capacitors - SMD 56UF 63V ESR=22

Download AHA1012560M063R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AHA1012560M063R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

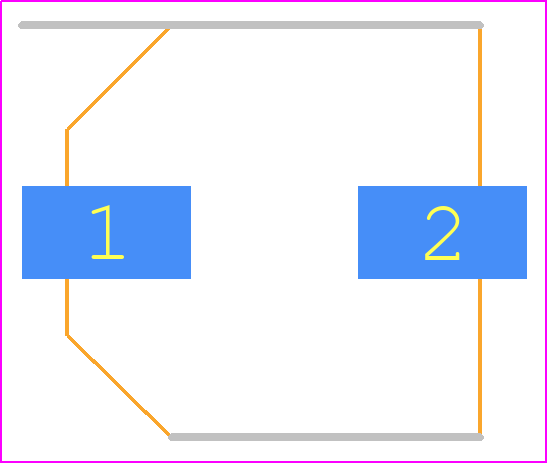

AHA1012560M063R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 1012-ren1
click to zoom
3D Models
AHA1012560M063R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - 1012-ren1
click to zoom

AHA1012560M063R Details

  • Manufacturer Part Number:

    AHA1012560M063R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    56 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    22 mΩ

  • Height:

    12.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.035 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    240 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

AHA1012560M063R Frequently Asked Questions (FAQs)

  • The recommended land pattern for AHA1012560M063R can be found in the Kyocera AVX Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the datasheet specifies an operating temperature range of -55°C to +125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Engineers should consult with Kyocera AVX Components' application engineers or technical support to determine the suitability of AHA1012560M063R for their specific high-temperature application.
  • The datasheet provides information on the component's impedance and ESR at specific frequencies, but engineers may need to consider additional factors such as self-resonance, parasitic inductance, and capacitive coupling when operating at high frequencies. Kyocera AVX Components may provide additional data or simulation models to help engineers optimize their design for high-frequency applications.
  • Yes, AHA1012560M063R is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering processes. However, engineers should follow the recommended soldering profiles and procedures to ensure reliable assembly and minimize the risk of defects.
  • The lifespan of AHA1012560M063R depends on various factors such as operating conditions, environmental factors, and application-specific stresses. While the datasheet provides information on the component's reliability and endurance, engineers should consult with Kyocera AVX Components' application engineers or technical support to determine the expected lifespan of AHA1012560M063R in their specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AHA1012560M063R Overview

Use the download button to access the AHA1012560M063R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHA10, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
