AHC0811470M050R - Kyocera AVX

Description: Aluminum Electrolytic Capacitors - SMD 47UF 50V

Download AHC0811470M050R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AHC0811470M050R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

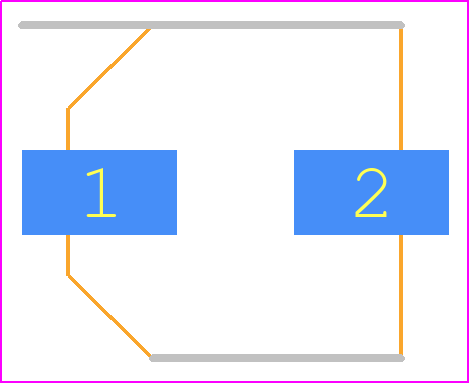

AHC0811470M050R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 0811
click to zoom
3D Models
AHC0811470M050R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - 0811
click to zoom

AHC0811470M050R Details

  • Manufacturer Part Number:

    AHC0811470M050R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    35 mΩ

  • Height:

    11.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0235 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    80 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

AHC0811470M050R Frequently Asked Questions (FAQs)

  • The recommended land pattern for AHC0811470M050R can be found in the Kyocera AVX Components' land pattern recommendation document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • While the datasheet specifies an operating temperature range of -55°C to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Engineers should consult with Kyocera AVX Components' application engineers or technical support to determine the suitability of AHC0811470M050R for their specific high-temperature application.
  • AHC0811470M050R, like many other ceramic capacitors, is sensitive to moisture. Engineers should follow the recommended handling and storage procedures to prevent moisture absorption, which can affect the component's reliability and performance. Kyocera AVX Components provides guidelines on moisture sensitivity and handling procedures in their documentation or through their customer support.
  • Yes, AHC0811470M050R requires specific soldering conditions to ensure reliable assembly. Engineers should follow the recommended soldering profile, which typically includes a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering atmosphere of nitrogen or air. Kyocera AVX Components provides detailed soldering guidelines in their documentation or through their customer support.
  • While AHC0811470M050R is designed to handle high voltages, it's essential to consider the voltage transient characteristics and the component's ability to withstand them. Engineers should consult with Kyocera AVX Components' application engineers or technical support to determine the suitability of AHC0811470M050R for their specific application with high voltage transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AHC0811470M050R Overview

Use the download button to access the AHC0811470M050R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHC08, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
