AHER1281 requires a careful PCB layout to minimize noise and ensure proper operation. It's recommended to follow Panasonic's application note for PCB layout guidelines, which includes keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device.
AHER1281 has a high power dissipation, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow Panasonic's thermal design guidelines. The device's thermal resistance (θja) is 25°C/W, so it's essential to keep the junction temperature below 125°C.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 50V or higher. A low-ESR ceramic capacitor (e.g., X5R or X7R) is recommended to minimize noise and ensure stable operation.
AHER1281 is rated for operation up to 105°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, ensure you follow Panasonic's derating guidelines and take necessary precautions to prevent overheating.
Common issues with AHER1281 can be caused by improper PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, check the PCB layout, ensure proper decoupling, and verify component values. You can also consult Panasonic's application notes and technical support resources for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AHER1281 Overview

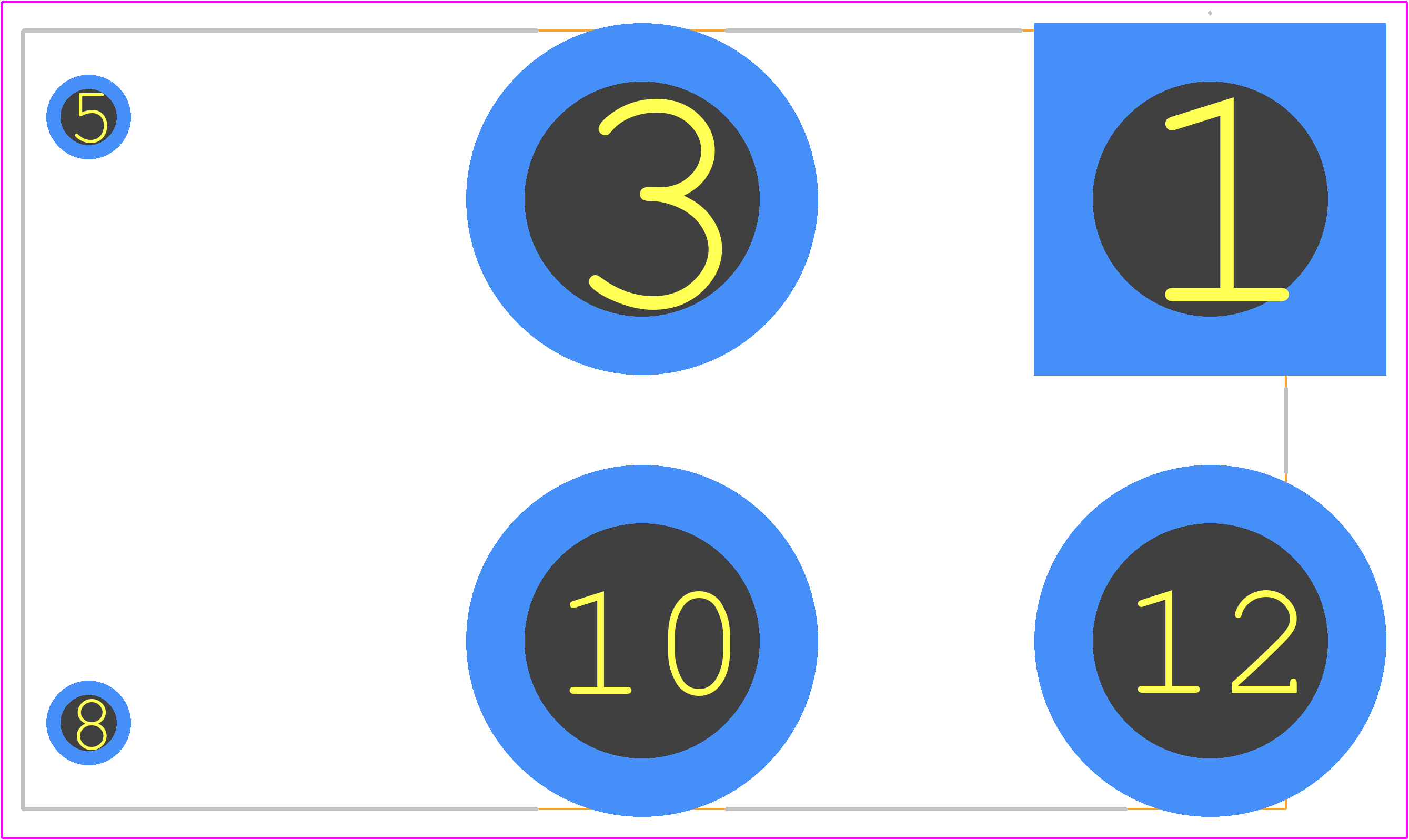

Use the download button to access the AHER1281 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHER1,
or try a keyword search, such as Power/Signal Relays
