AHER3191 requires a careful PCB layout to minimize noise and ensure proper operation. It's recommended to follow Panasonic's application note for PCB layout guidelines, which includes separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device.
The AHER3191 has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to operate the device within a range of 4.5V to 5.5V to ensure optimal performance and minimize power consumption.
To troubleshoot output signal issues, check the input signal quality, ensure proper power supply decoupling, and verify that the device is properly configured. Also, use an oscilloscope to monitor the output signal and check for any signs of distortion, noise, or oscillation.
Yes, the AHER3191 is suitable for high-reliability and automotive applications. However, it's essential to follow Panasonic's guidelines for reliability and quality, and to ensure that the device is properly qualified and validated for the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AHER3191 Overview

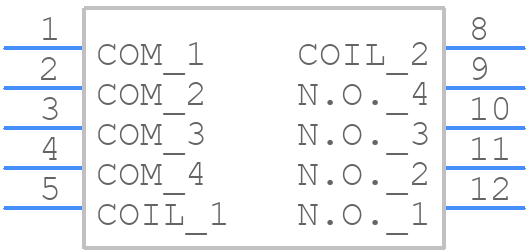

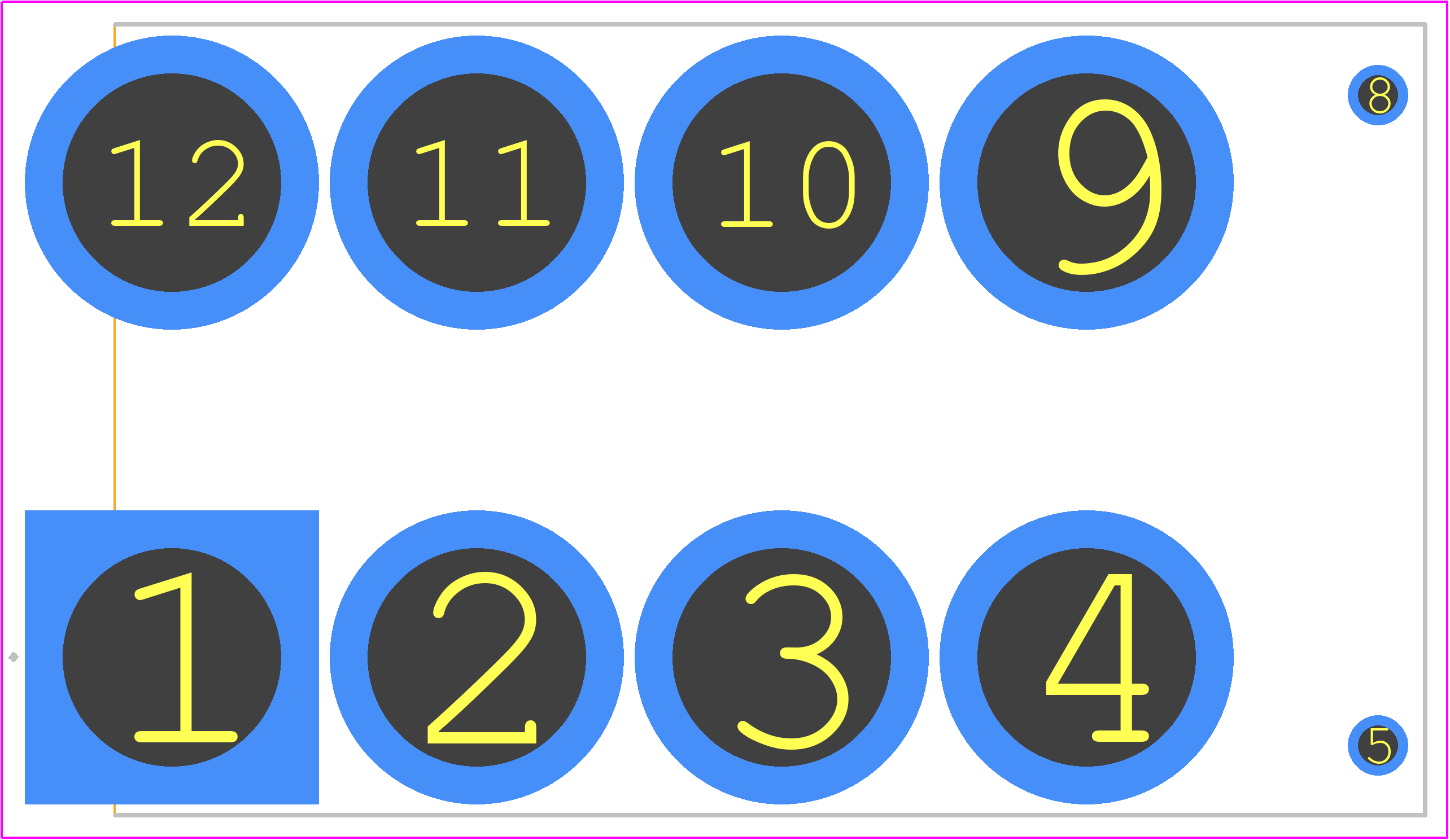

Use the download button to access the AHER3191 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHER3,
or try a keyword search, such as Power/Signal Relays
