AHER4191 - Panasonic

Description: General Purpose Relays HE-R RELAY,4FORMA+1FORMB,12VDC

Download AHER4191 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

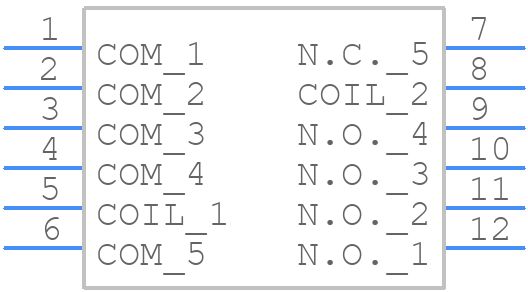

Symbol
AHER4191 - Panasonic - PCB symbol
click to zoom

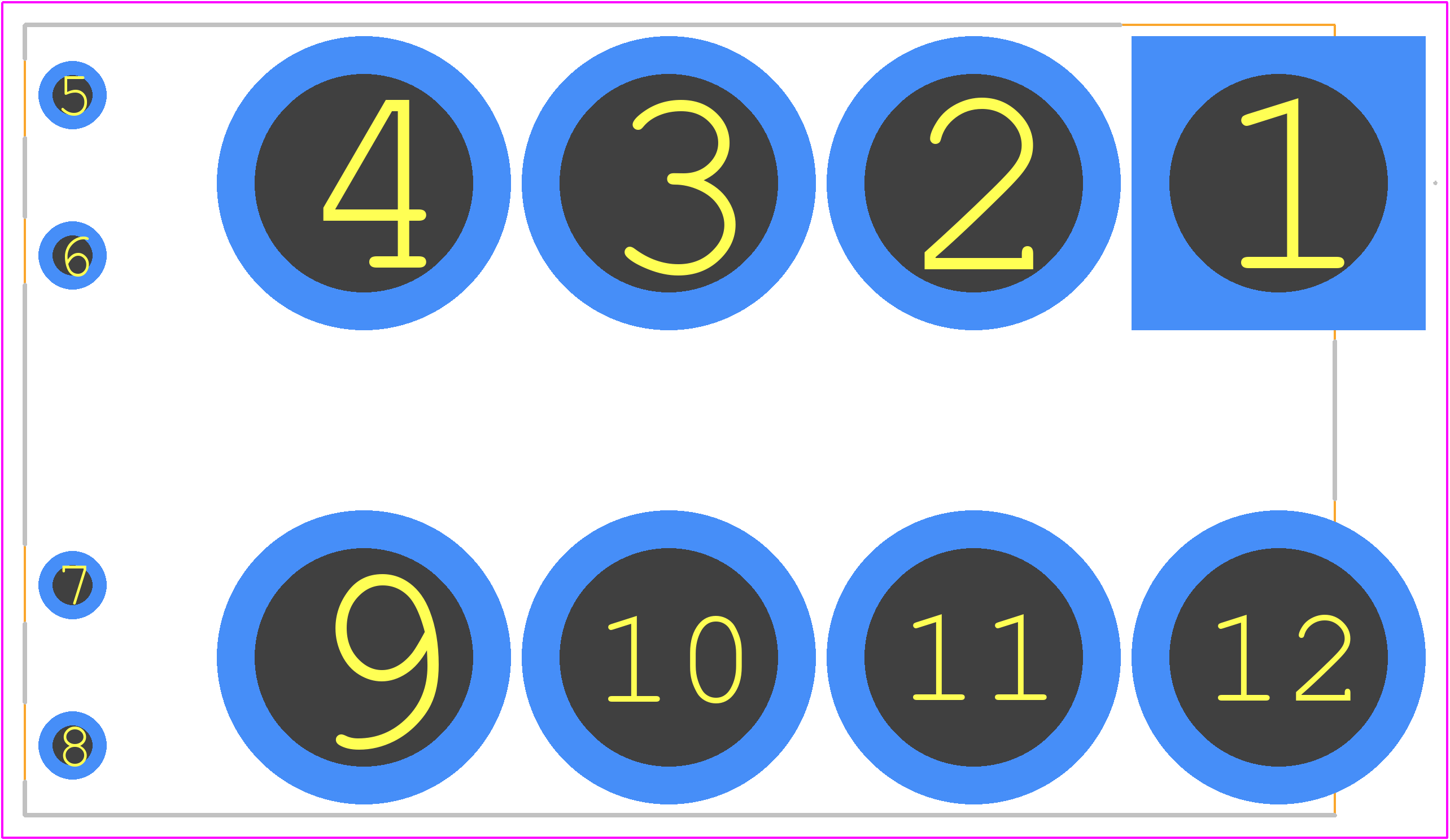

PCB Footprints
AHER4191 - Panasonic PCB footprint - Other - Other - AHER4191
click to zoom
3D Models
AHER4191 - Panasonic - 3D model - Other - AHER4191
click to zoom

AHER4191 Details

  • Manufacturer Part Number:

    AHER4191

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Coil Current(DC)-Max:

    0.333 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    4000 mW

  • Coil Release Voltage(DC):

    0.6 V

  • Coil Resistance:

    36 Ω

  • Coil Voltage(DC)-Max:

    13.2 V

  • Coil Voltage-Nom:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    19200VA@480VAC

  • Contact (AC) Max Rating R Load:

    40A@480VAC

  • Contact Current(AC)-Max:

    40 A

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(AC)-Max:

    480 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • End Contact Material:

    Silver Tin Oxide

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Operate Time:

    50 ms

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Reference Standard:

    CUL; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    30 ms

  • Sealing:

    SEALED TYPE

  • Termination Type:

    SOLDER
