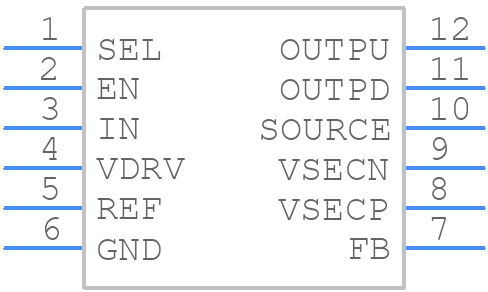

AHV85111KNHTR - Allegro Microsystems

AHV85111KNHTR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the high-current paths short and wide. Additionally, decoupling capacitors should be placed close to the device.
• How do I ensure accurate current sensing with the AHV85111?
  To ensure accurate current sensing, the device should be calibrated during manufacturing or at the system level. Allegro provides a calibration procedure in the application note AN296068. Additionally, the PCB layout should be designed to minimize noise and interference.
• What is the maximum allowable voltage on the VCC pin?
  Although the datasheet specifies a maximum VCC voltage of 5.5V, Allegro recommends limiting the voltage to 5V to ensure reliable operation and to prevent damage to the device.
• Can I use the AHV85111 in a high-temperature environment?
  The AHV85111 is rated for operation up to 150°C, but Allegro recommends derating the device's performance at high temperatures. Consult the datasheet and application notes for specific guidance on high-temperature operation.
• How do I troubleshoot issues with the AHV85111?
  Allegro provides a troubleshooting guide in the application note AN296069, which covers common issues and their solutions. Additionally, engineers can contact Allegro's technical support team for assistance.
