AIMCQ120R020M1TXTMA1 - Infineon

Description: CoolSiC™ Automotive MOSFET 1200 V in HDSOP-22-3 package

Download AIMCQ120R020M1TXTMA1 Model

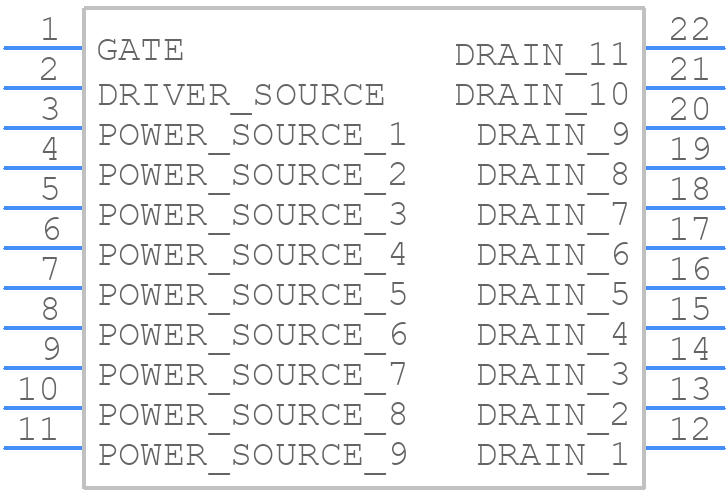

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AIMCQ120R020M1TXTMA1 - Infineon PCB footprint - Other - Other - PG-HDSOP-22-3_2025
click to zoom
3D Models
AIMCQ120R020M1TXTMA1 - Infineon  - 3D model - Other - PG-HDSOP-22-3_2025
click to zoom

AIMCQ120R020M1TXTMA1 Details

  • Manufacturer Part Number:

    AIMCQ120R020M1TXTMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HDSOP-22-3, 22 PIN

  • Country Of Origin:

    Austria, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    383 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    116 A

  • Drain-source On Resistance-Max:

    0.025 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7 pF

  • JESD-30 Code:

    R-PDSO-G22

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    22

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    577 W

  • Pulsed Drain Current-Max (IDM):

    295 A

  • Reference Standard:

    AEC-Q101; IEC60664

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

AIMCQ120R020M1TXTMA1 Frequently Asked Questions (FAQs)

  • The thermal resistance (Rth) of the AIMCQ120R020M1TXTMA1 is typically around 0.5 K/W (junction-to-case) and 1.5 K/W (junction-to-ambient) at a maximum junction temperature of 150°C.
  • Yes, the AIMCQ120R020M1TXTMA1 is designed for high-reliability applications, such as automotive, industrial, and aerospace. It meets the requirements of AEC-Q101 and is manufactured using a robust and reliable process.
  • To ensure reliability in a humid environment, it's essential to follow proper storage and handling procedures, such as storing the devices in a dry, nitrogen-filled environment, and using moisture-sensitive packaging. Additionally, consider using conformal coating or potting to protect the device from moisture.
  • The recommended PCB layout and thermal design for the AIMCQ120R020M1TXTMA1 involve using a thermal pad, thermal vias, and a heat sink to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the PCB should be designed to minimize thermal resistance.
  • The AIMCQ120R020M1TXTMA1 is rated for a maximum voltage of 1200 V. While it can be used in high-voltage applications, it's essential to ensure that the device is properly designed and tested to meet the specific requirements of the application, including voltage, current, and temperature.
