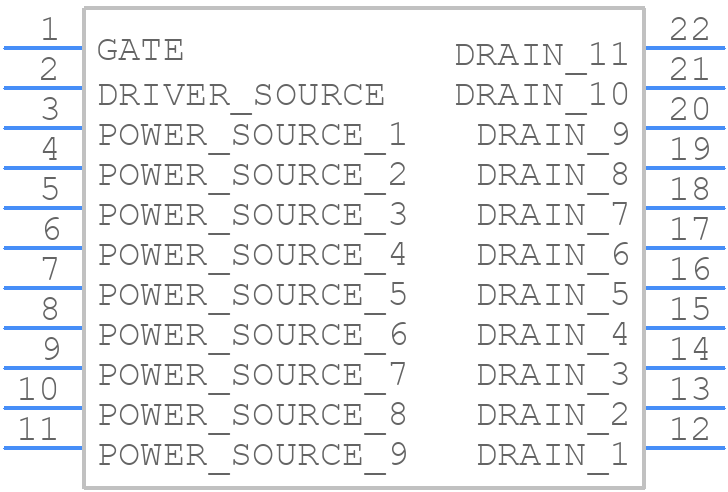

AIMCQ120R030M1T - Infineon

AIMCQ120R030M1T Details

• Manufacturer Part Number:

  AIMCQ120R030M1T

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HDSOP-22-3, 22 PIN

• Country Of Origin:

  Austria, Malaysia

• ECCN Code:

  EAR99

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  8

• Avalanche Energy Rating (Eas):

  361 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

• DS Breakdown Voltage-Min:

  1200 V

• Drain Current-Max (ID):

  78 A

• Drain-source On Resistance-Max:

  0.038 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  4.4 pF

• JESD-30 Code:

  R-PDSO-G22

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  22

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  417 W

• Pulsed Drain Current-Max (IDM):

  198 A

• Reference Standard:

  AEC-Q101; IEC-60664

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON CARBIDE
