Abracon provides a recommended PCB layout and land pattern in their application note AN-03, which can be found on their website. It's essential to follow this layout to ensure proper performance and minimize parasitic effects.
The AIRD-02-100K is an ESD-sensitive device. To handle ESD sensitivity, follow proper ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded. Additionally, consider adding ESD protection devices in the circuit design.
The operating temperature range for the AIRD-02-100K is -40°C to +85°C. However, it's essential to note that the device's performance may vary across this temperature range, and it's recommended to consult the datasheet for specific temperature-related characteristics.
The AIRD-02-100K is designed to operate in a variety of environments, including those with high vibration. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Consult Abracon's application notes for more information on vibration testing and considerations.
To troubleshoot issues with the AIRD-02-100K, start by consulting the datasheet and application notes. Check for proper PCB layout, component placement, and soldering. Use oscilloscopes and other diagnostic tools to identify signal integrity issues. If the problem persists, contact Abracon's technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-02-100K Overview

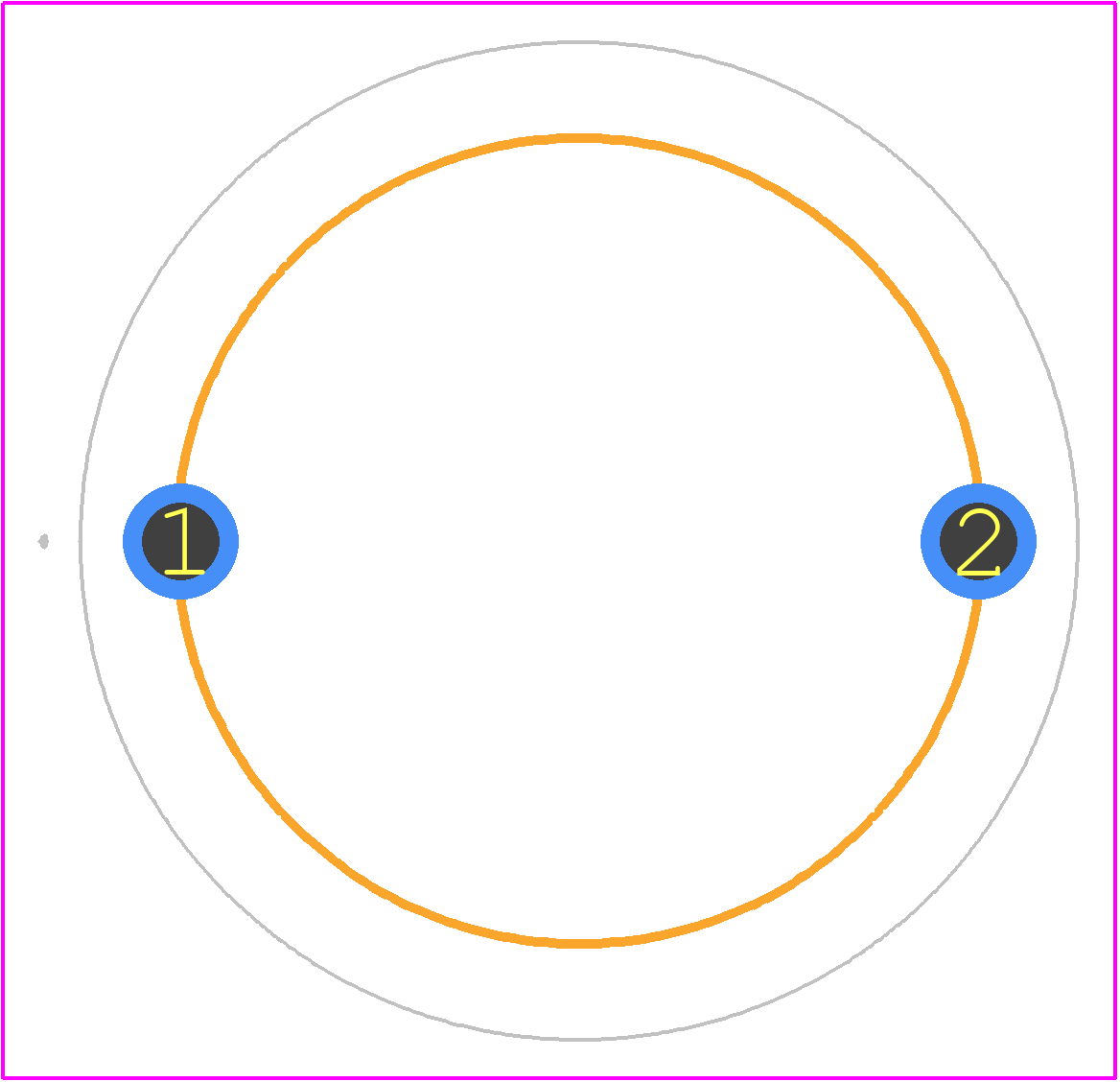

Use the download button to access the AIRD-02-100K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
