AIRD-03-100K Frequently Asked Questions (FAQs)

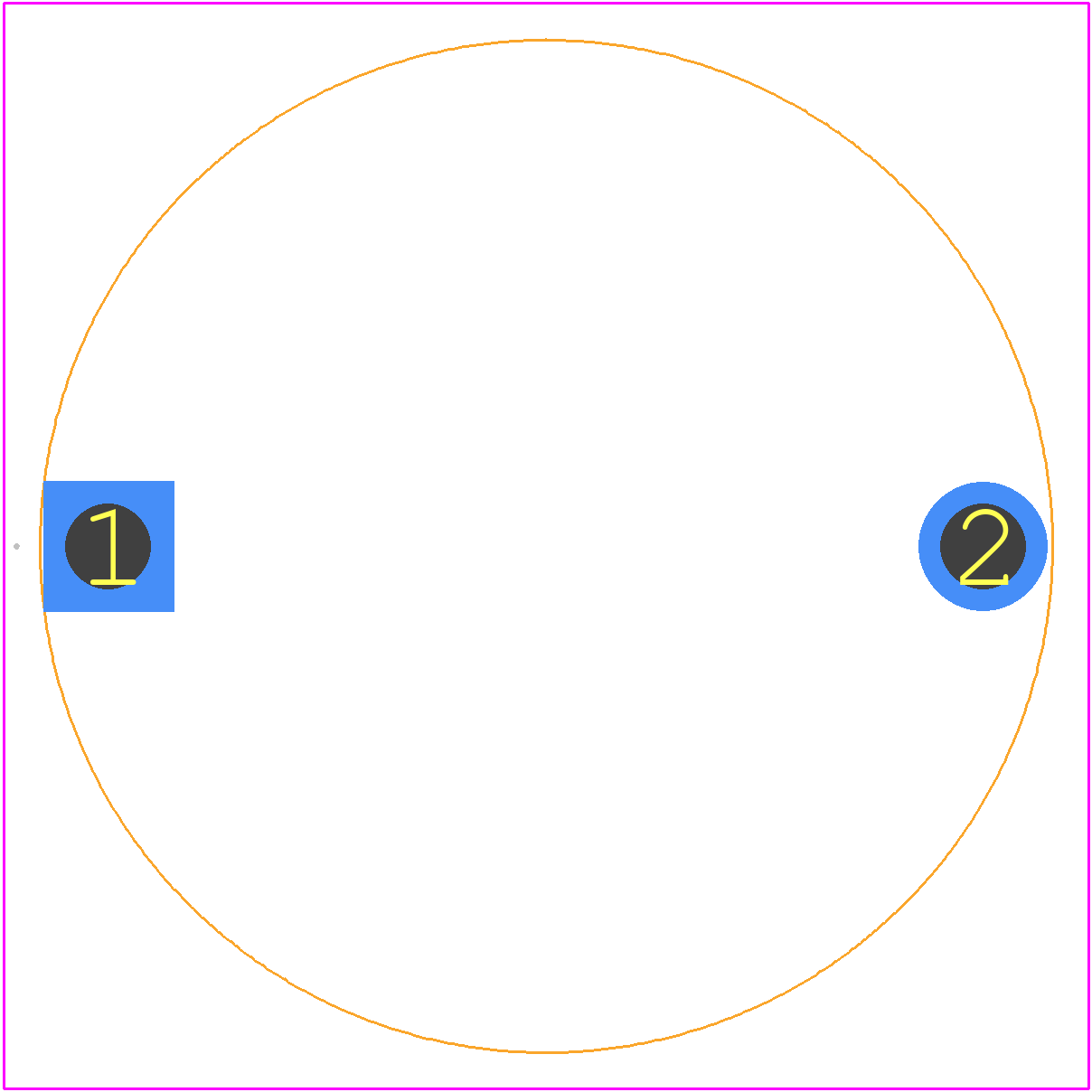

• What is the recommended PCB land pattern for the AIRD-03-100K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-03-100K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow profile with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds above 220°C (428°F). Additionally, ensure the component is properly centered on the PCB and that the solder paste is evenly distributed.
• What is the maximum operating temperature range for the AIRD-03-100K?
  The AIRD-03-100K is rated for operation from -40°C to +125°C (-40°F to +257°F), but it's essential to note that the device's accuracy and stability may degrade at extreme temperatures.
• Can I use the AIRD-03-100K in a high-vibration environment?
  While the AIRD-03-100K is designed to be robust, it's still a sensitive electronic component. Abracon recommends following proper mounting and soldering techniques to ensure the device can withstand vibrations up to 10g (98m/s²) in the frequency range of 10Hz to 2kHz.
• How do I store the AIRD-03-100K to prevent damage or degradation?
  Store the AIRD-03-100K in its original packaging or a similar ESD-protective package, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive pressure to the component.
