Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To prevent moisture-related issues, store the AIRD-03-101K in a dry, sealed package or bag with desiccant. During assembly, ensure the PCB is clean and dry, and avoid exposing the component to high humidity or moisture during the soldering process.
While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the component's performance and accuracy may degrade at extreme temperatures. For optimal performance, it's recommended to operate the AIRD-03-101K within a temperature range of -20°C to +70°C.
Yes, the AIRD-03-101K is designed to withstand moderate vibration levels. However, it's crucial to ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent damage or detachment during vibration.
To troubleshoot issues with the AIRD-03-101K's accuracy or stability, check the component's power supply voltage, ensure proper PCB layout and routing, and verify that the component is properly soldered and seated. Also, consult the datasheet and application notes for guidance on optimizing the component's performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-03-101K Overview

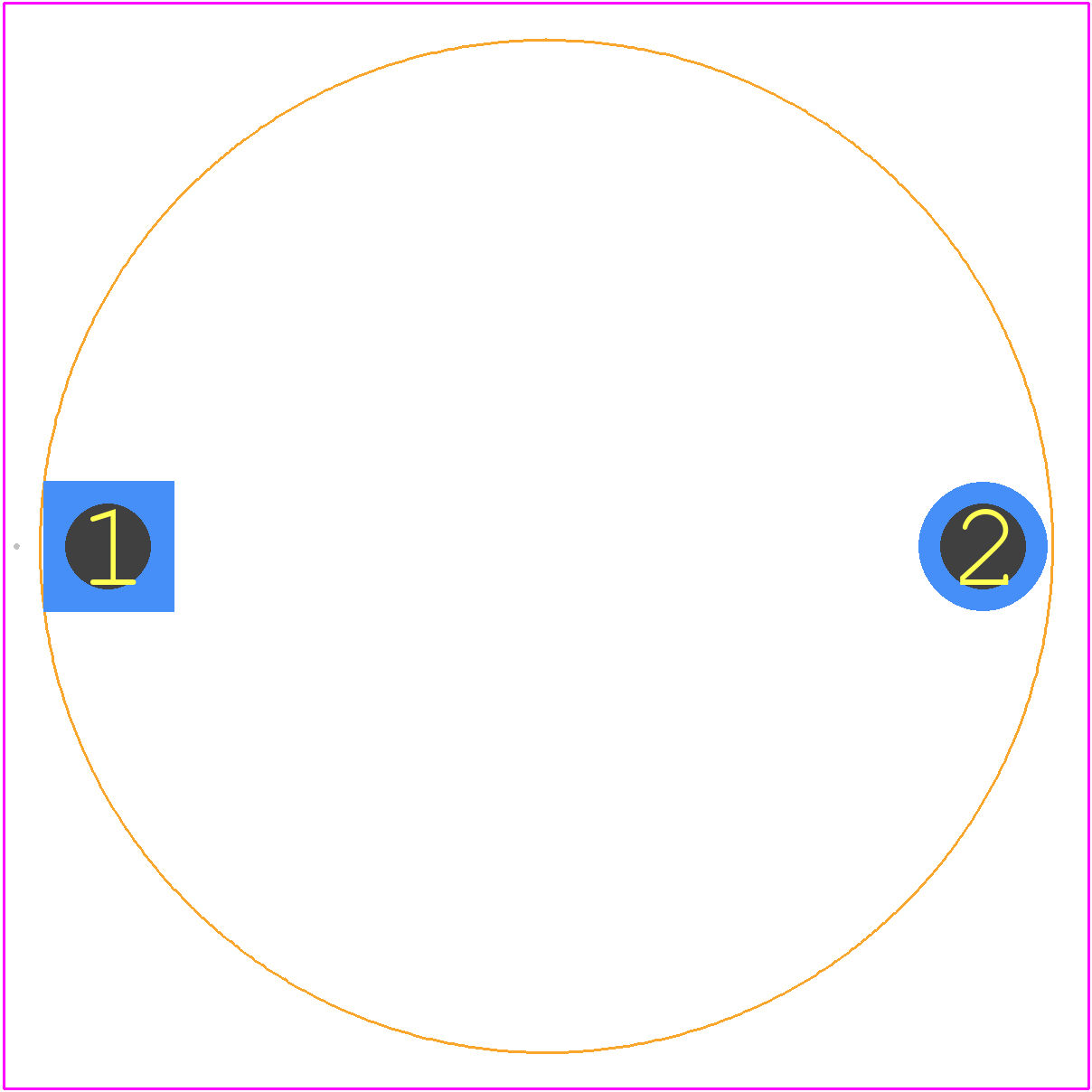

Use the download button to access the AIRD-03-101K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
