AIRD-03-102K - ABRACON

Description: FIXED IND 1MH 2A 426 MOHM TH

Download AIRD-03-102K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AIRD-03-102K - ABRACON - PCB symbol
click to zoom
PCB Footprints

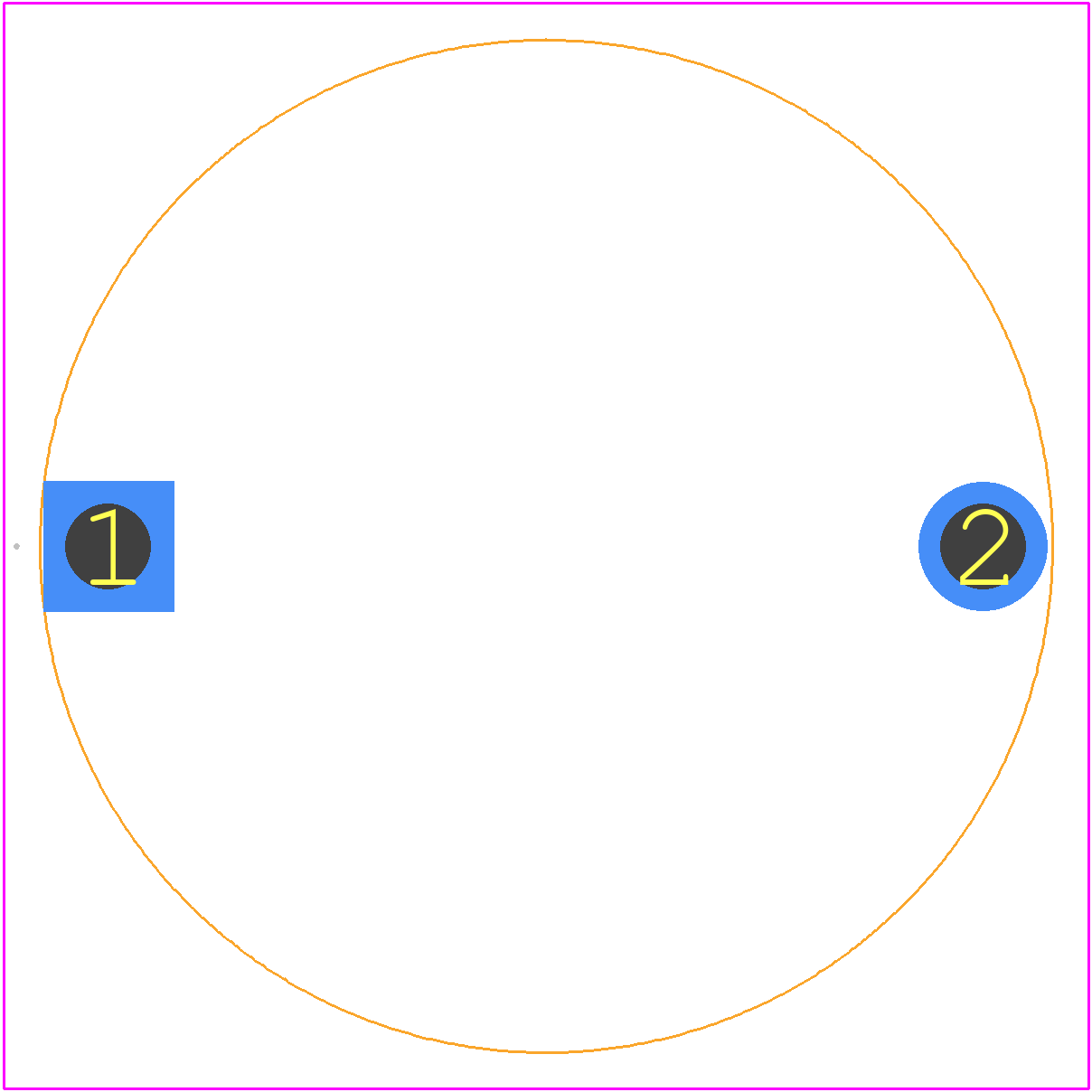

AIRD-03-102K - ABRACON PCB footprint - Other - Other - AIRD-03
click to zoom
3D Models
AIRD-03-102K - ABRACON - 3D model - Other - AIRD-03
click to zoom

AIRD-03-102K Details

  • Manufacturer Part Number:

    AIRD-03-102K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Construction:

    Wirewound

  • Core Material:

    FERRITE

  • DC Resistance:

    0.426 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    0.6 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    20 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Diameter:

    28 mm

  • Package Length:

    22.5 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    2 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

AIRD-03-102K Frequently Asked Questions (FAQs)

  • Abracon recommends storing the AIRD-03-102K in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 85°C (-40°F to 185°F) and relative humidity below 80%.
  • Yes, the AIRD-03-102K is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure the device to prevent mechanical stress and damage.
  • The AIRD-03-102K can operate within a temperature range of -40°C to 85°C (-40°F to 185°F). However, it's recommended to operate within the specified temperature range for optimal performance and reliability.
  • Yes, the AIRD-03-102K is compatible with lead-free soldering processes. Abracon ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical lead time for AIRD-03-102K orders varies depending on the quantity and availability. It's recommended to check with Abracon or an authorized distributor for the most up-to-date lead time information.
