AIRD-03-470K footprint, schematic symbol and 3D model by ABRACON

Symbol

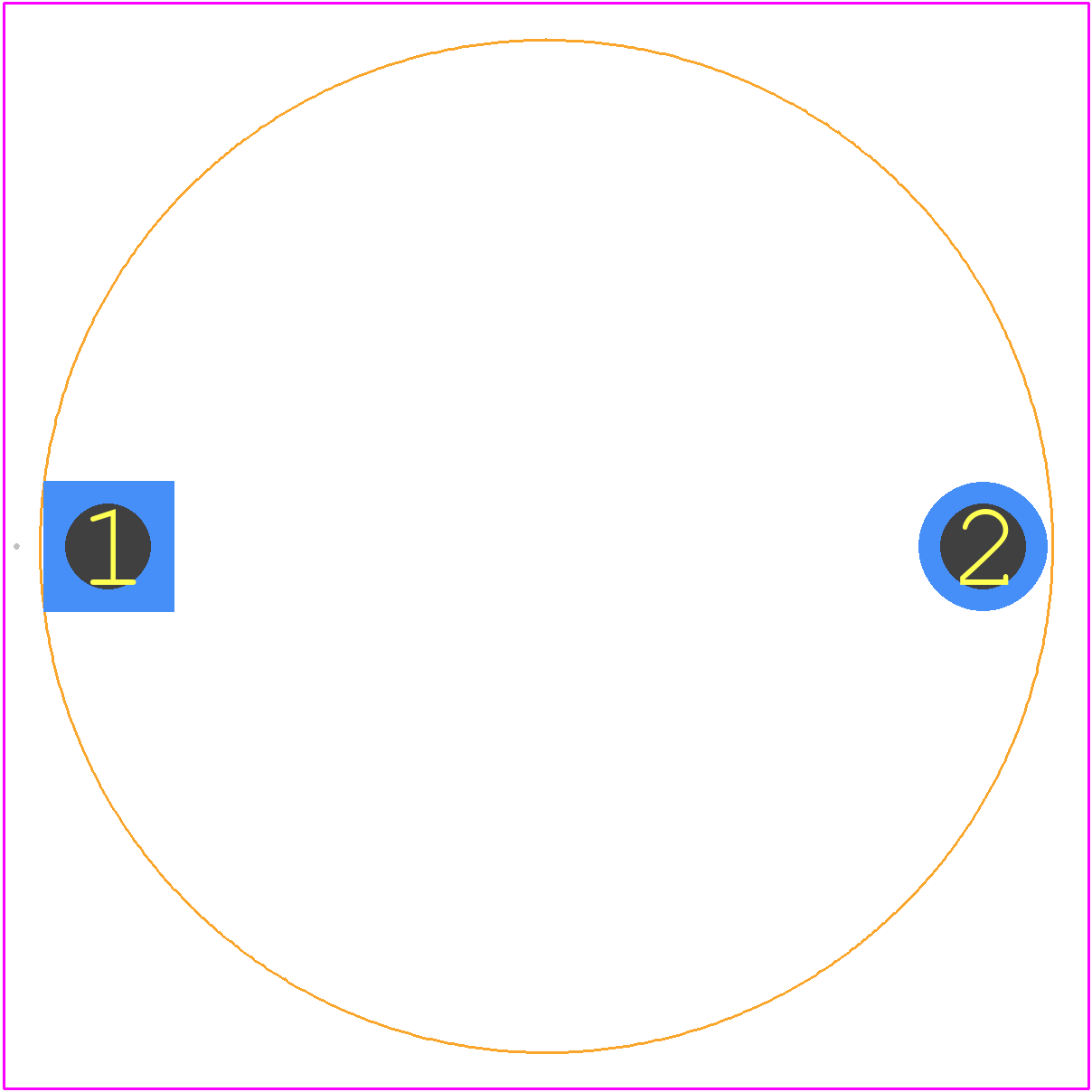

PCB Footprints

3D Models

AIRD-03-470K Details

Abracon provides a recommended PCB layout and land pattern in their application notes (AN-03) and on their website. It's essential to follow these guidelines to ensure proper performance and minimize parasitic effects.
While the datasheet specifies an operating temperature range of -40°C to +125°C, Abracon recommends derating the component's performance at high temperatures. Engineers should consult Abracon's application notes or contact their support team for specific guidance on high-temperature operation.
The datasheet doesn't specify a maximum current rating. However, Abracon recommends following the power handling guidelines outlined in their application notes (AN-03) to ensure the component operates within safe limits.
While the AIRD-03-470K is designed to be rugged, Abracon recommends evaluating the component's performance in high-vibration or high-shock environments through additional testing and analysis. Engineers should consult Abracon's application notes or contact their support team for guidance on specific use cases.
Yes, Abracon recommends following proper EMI/EMC design practices, such as using proper shielding, grounding, and decoupling, to minimize electromagnetic interference and ensure the component operates within regulatory guidelines.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AIRD-03-470K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
