Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To prevent moisture-related issues, store the AIRD-03-681K in a dry, sealed package or bag with desiccant. When handling the component, use gloves and a wrist strap to prevent electrostatic discharge (ESD). Avoid exposing the component to high humidity or temperature environments during assembly and testing.
While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the component's performance and accuracy may degrade at extreme temperatures. For optimal performance, it's recommended to operate the AIRD-03-681K within a temperature range of -20°C to +70°C.
Yes, the AIRD-03-681K is designed to withstand moderate vibration levels. However, it's crucial to ensure that the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent mechanical stress and damage.
To troubleshoot frequency-related issues, verify that the AIRD-03-681K is properly soldered and that the PCB layout meets the recommended guidelines. Check for any signs of mechanical stress, ESD damage, or contamination. If issues persist, consult Abracon's application notes and technical support resources for guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-03-681K Overview

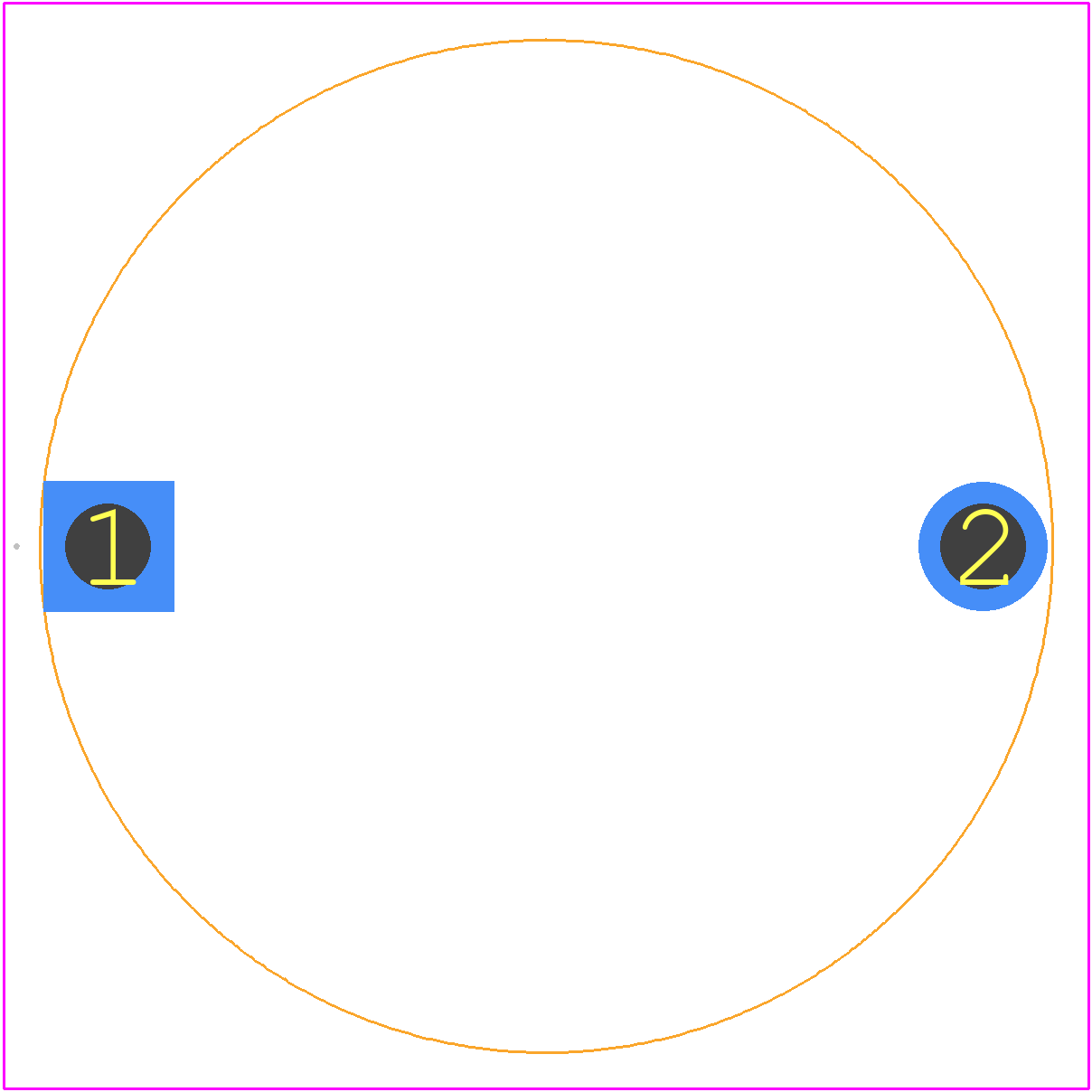

Use the download button to access the AIRD-03-681K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
