Abracon provides a recommended PCB layout and land pattern in their application note AN-03, which can be found on their website. It's essential to follow this layout to ensure proper performance and minimize parasitic effects.
The AIRD-03-820K has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using thermal vias, heat sinks, or thermal interface materials. Abracon recommends following the thermal management guidelines outlined in their application note AN-04.
Abracon recommends following the JEDEC J-STD-020D.1 standard for soldering the AIRD-03-820K. This standard outlines the recommended soldering temperature, time, and other parameters to ensure reliable assembly.
Yes, the AIRD-03-820K is designed to operate in high-vibration environments. However, it's essential to follow Abracon's guidelines for vibration testing and ensure that the PCB is properly secured and mounted to prevent damage or dislodging of the component.
Abracon provides a troubleshooting guide in their application note AN-05, which covers common issues and their solutions. Additionally, engineers can contact Abracon's technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-03-820K Overview

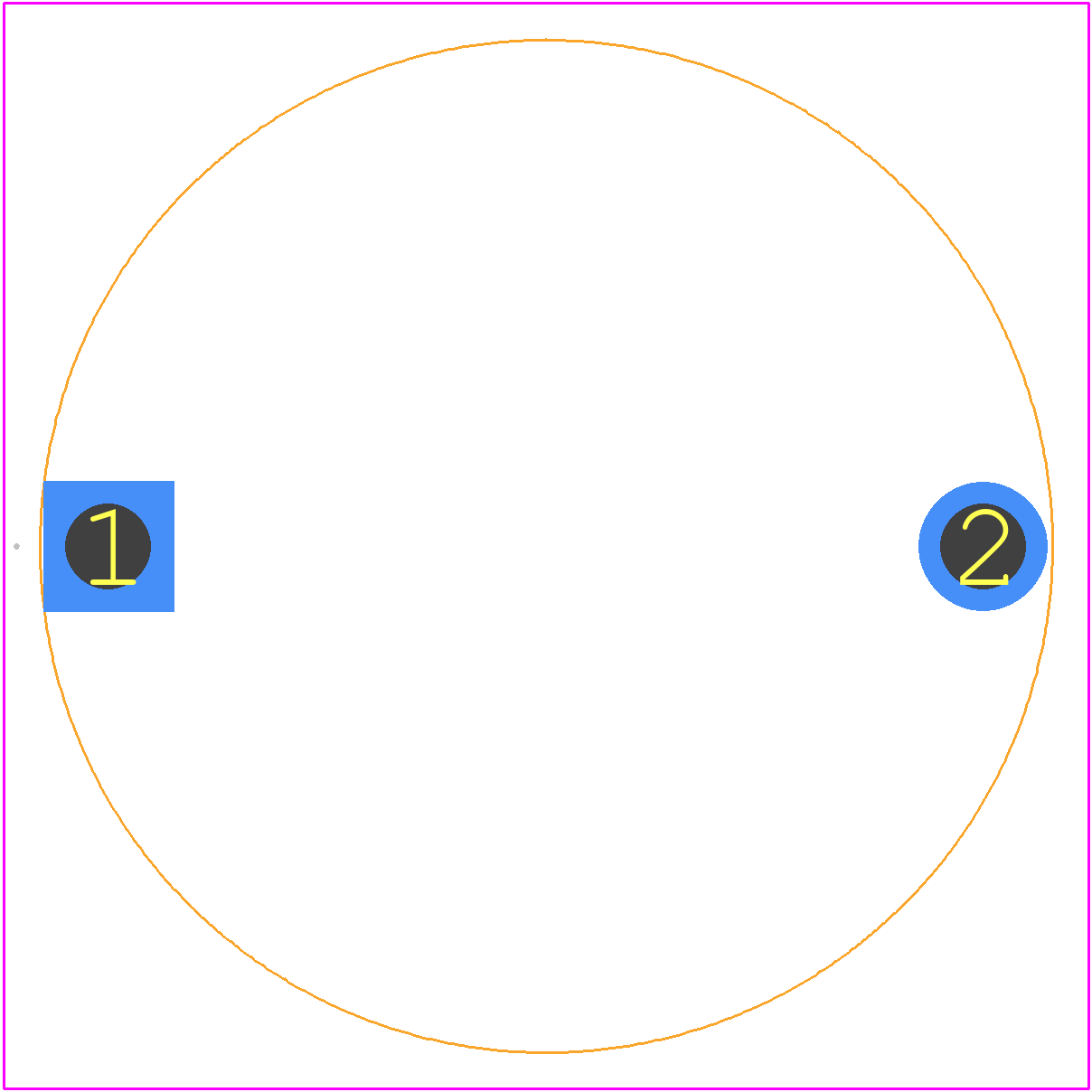

Use the download button to access the AIRD-03-820K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
