AIRD-06-182K - ABRACON

Description: Inductor Power Drum Core 1800uH 10% 1KHz 15Q-Factor Ferrite 0.8A 1.39Ohm DCR RDL

Download AIRD-06-182K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AIRD-06-182K - ABRACON - PCB symbol
click to zoom
PCB Footprints

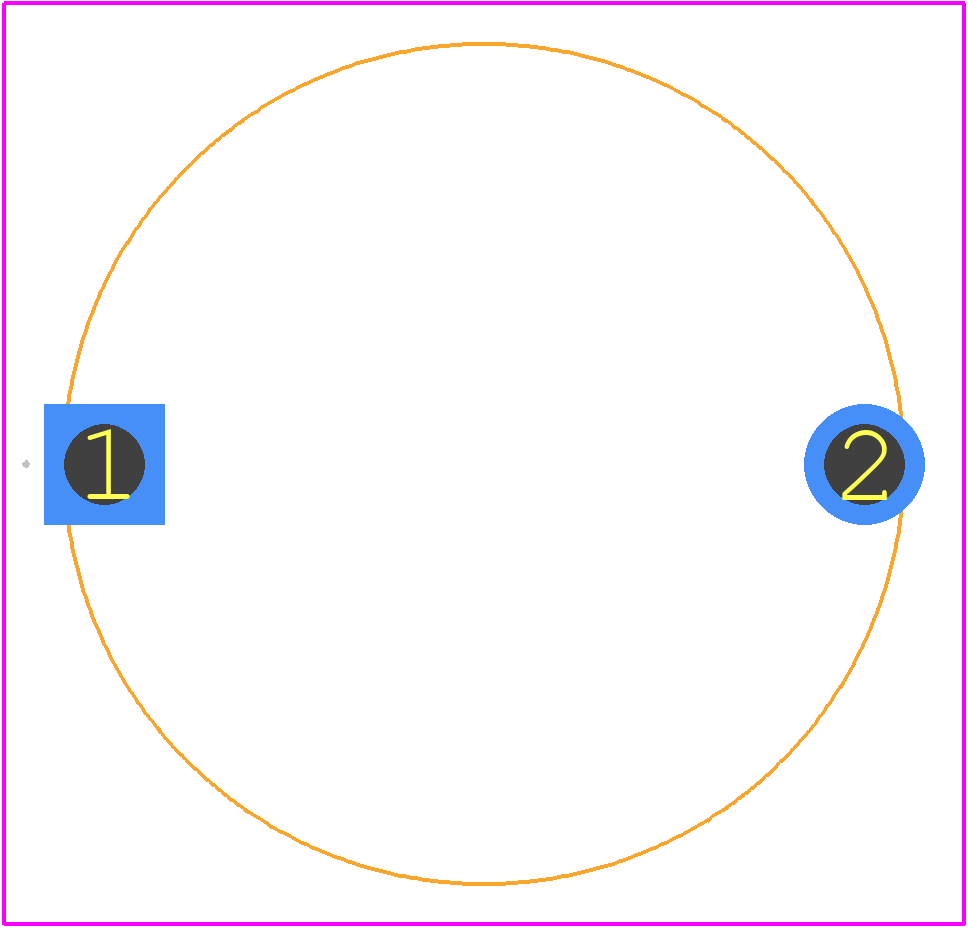

AIRD-06-182K - ABRACON PCB footprint - Other - Other - AIRD-06
click to zoom
3D Models
AIRD-06-182K - ABRACON - 3D model - Other - AIRD-06
click to zoom

AIRD-06-182K Details

  • Manufacturer Part Number:

    AIRD-06-182K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Construction:

    Cylindrical

  • Core Material:

    FERRITE

  • DC Resistance:

    1.39 Ω

  • Inductance-Nom (L):

    1800 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.8 mm

  • Lead Length:

    12.5 mm

  • Lead Spacing:

    19 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    21 mm

  • Package Length:

    21 mm

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Quality Factor-Min (at L-nom):

    15

  • Rated Current-Max:

    0.8 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

AIRD-06-182K Frequently Asked Questions (FAQs)

  • Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
  • To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on a flat, even surface to prevent warping or damage.
  • The AIRD-06-182K is rated for operation from -40°C to +85°C (-40°F to +185°F), but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
  • Yes, the AIRD-06-182K is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2kHz. However, it's recommended to perform additional testing and validation for specific vibration profiles.
  • Abracon recommends following proper PCB design and layout guidelines, using shielding and grounding techniques, and performing EMI and RFI testing to ensure compliance with specific regulations and standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AIRD-06-182K Overview

Use the download button to access the AIRD-06-182K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
