AIRD-06-470K - ABRACON

Description: 47 µH Unshielded Drum Core, Wirewound Inductor 5.5 A 35mOhm Max Radial, Vertical Cylinder

Download AIRD-06-470K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AIRD-06-470K - ABRACON - PCB symbol
click to zoom
PCB Footprints

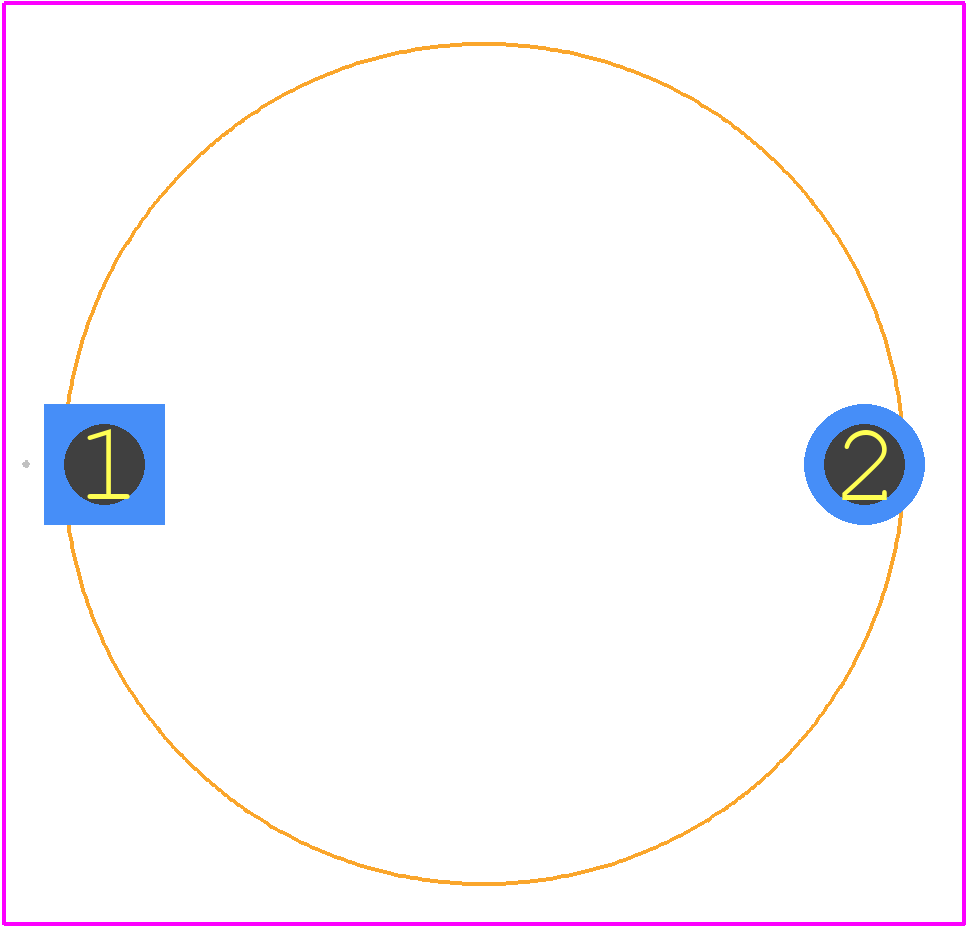

AIRD-06-470K - ABRACON PCB footprint - Other - Other - AIRD-06
click to zoom
3D Models
AIRD-06-470K - ABRACON - 3D model - Other - AIRD-06
click to zoom

AIRD-06-470K Details

  • Manufacturer Part Number:

    AIRD-06-470K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Construction:

    Cylindrical

  • Core Material:

    FERRITE

  • DC Resistance:

    0.035 Ω

  • Inductance-Nom (L):

    47 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.8 mm

  • Lead Length:

    12.5 mm

  • Lead Spacing:

    19 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Length:

    21 mm

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Quality Factor-Min (at L-nom):

    15

  • Rated Current-Max:

    5.5 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%
