AIRD-06-4R7M - ABRACON

Description: 4.7 µH Unshielded Wirewound Inductor 11.4 A 5mOhm Max Radial, Vertical Cylinder

Download AIRD-06-4R7M Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AIRD-06-4R7M model

Email notifications will be applied after download.

Send part feedback

Symbol

AIRD-06-4R7M - ABRACON - PCB symbol

PCB Footprints

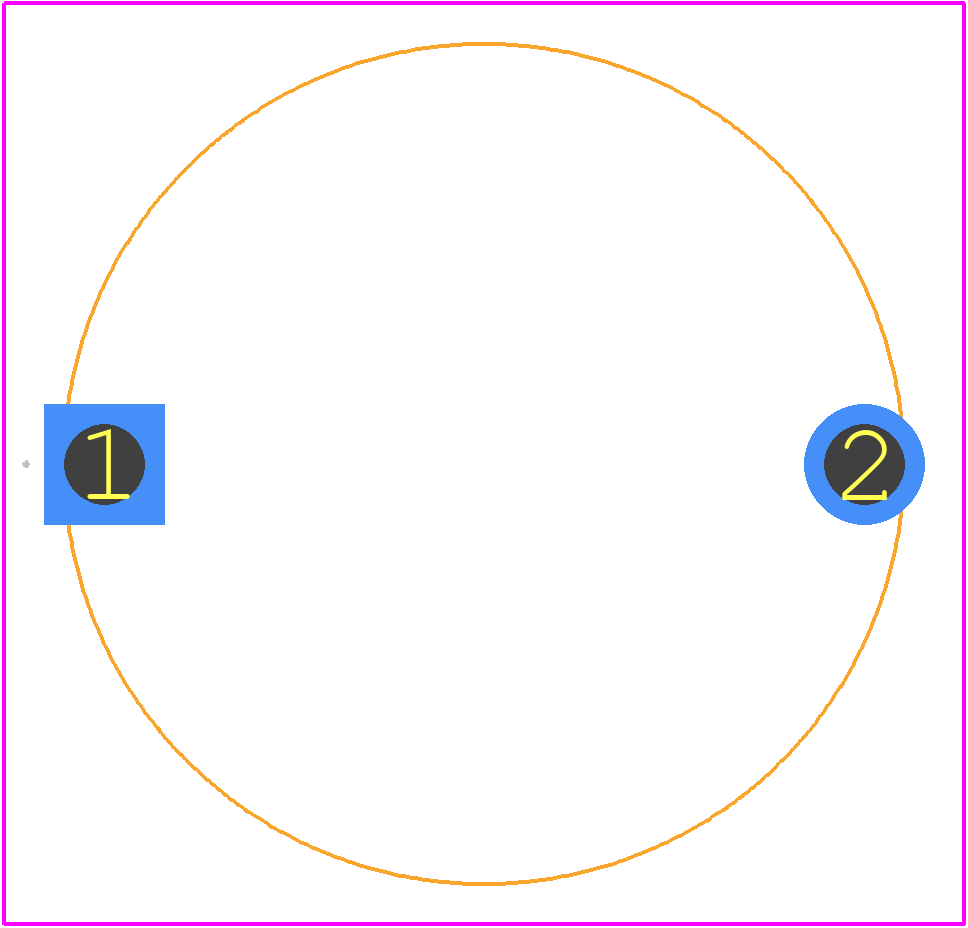

AIRD-06-4R7M - ABRACON PCB footprint - Other - Other - AIRD-06

3D Models

AIRD-06-4R7M - ABRACON - 3D model - Other - AIRD-06

Datasheet Download Datasheet
Stock & Prices Price & Stock for AIRD-06-4R7M
Part Number AIRD-06-4R7M
Manufacturer ABRACON
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - AIRD-06
Released Date Apr 17, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

AIRD-06-4R7M Details

Manufacturer Part Number:
AIRD-06-4R7M
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
16 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
