AIRD-06-821K Frequently Asked Questions (FAQs)

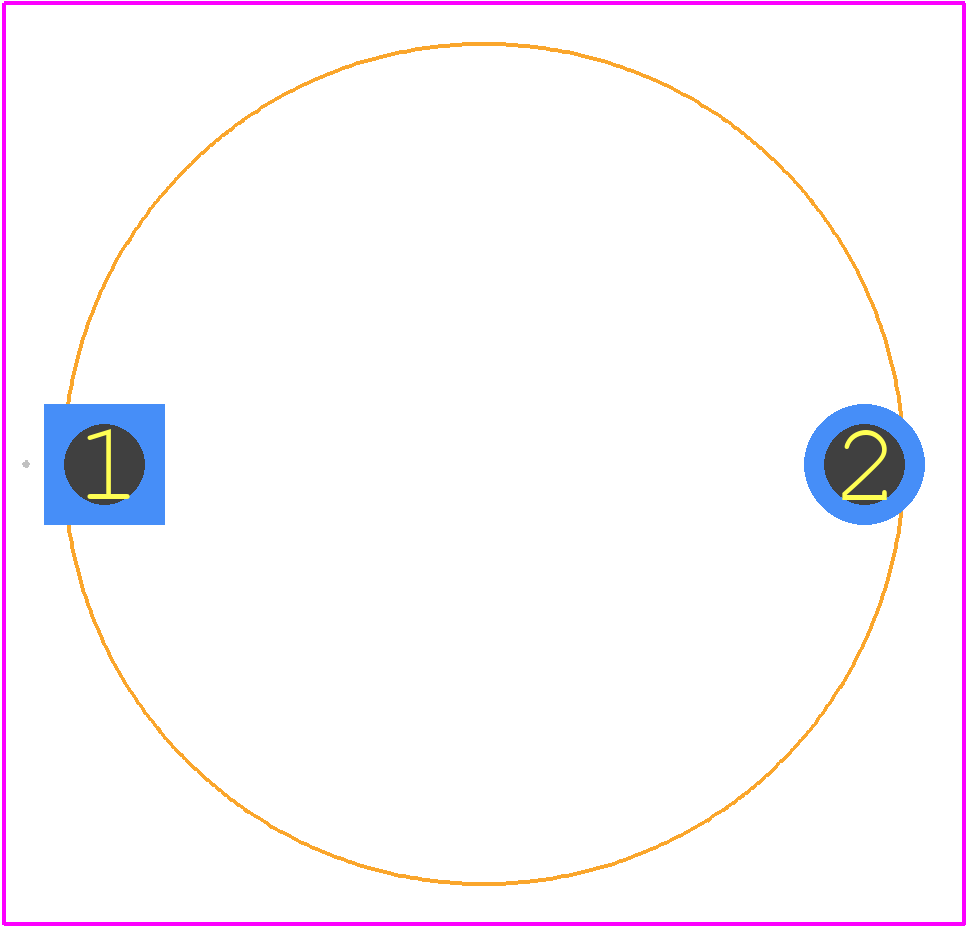

• What is the recommended PCB land pattern for the AIRD-06-821K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-06-821K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on the PCB with the markings facing upwards.
• What is the maximum operating temperature range for the AIRD-06-821K?
  The AIRD-06-821K is rated for operation from -40°C to +85°C, but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
• Can I use the AIRD-06-821K in a high-vibration environment?
  Yes, the AIRD-06-821K is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to follow Abracon's guidelines for vibration testing and to ensure proper PCB mounting and soldering.
• How do I troubleshoot issues with the AIRD-06-821K?
  Abracon recommends following a systematic troubleshooting approach, including checking the PCB layout, soldering quality, and component orientation. Additionally, Abracon provides application notes and technical support to help resolve issues.
