AIS3624DQ - STMicroelectronics

Description: High-performance motion sensor for automotive applications: ultra-low-power digital output 3-axis accelerometer , 25Hz ~ 500Hz , 2.4V ~ 3.6V , -40°C ~ 105°C

Download AIS3624DQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

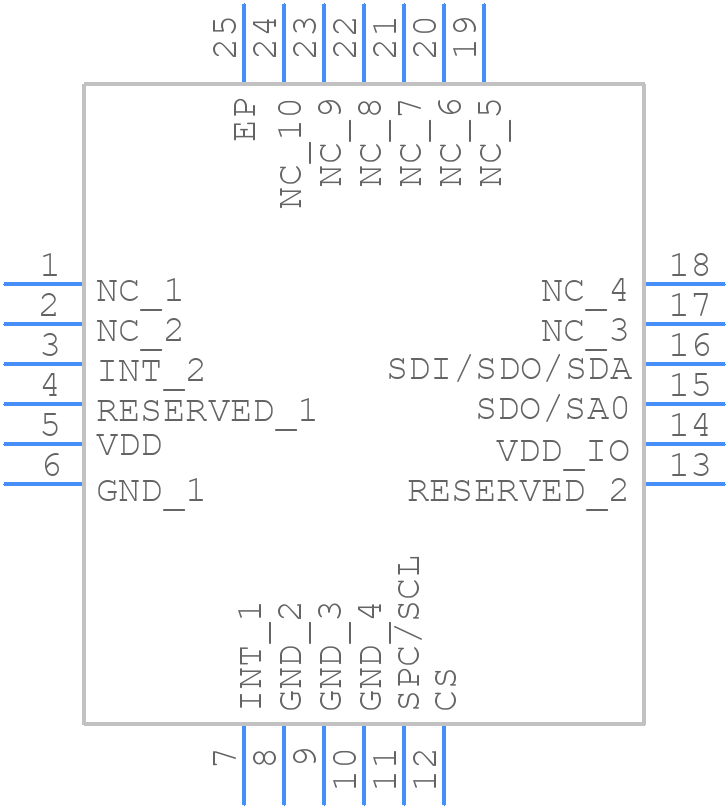

AIS3624DQ - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
AIS3624DQ - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 24L
click to zoom
3D Models
AIS3624DQ - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN 24L
click to zoom

AIS3624DQ Details

  • Manufacturer Part Number:

    AIS3624DQ

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AIS3624DQ Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4509, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and noise reduction.
  • The AIS3624DQ does not require calibration, as it is a self-testable and self-calibrating device. However, it's recommended to perform a self-test after power-on to ensure the device is functioning correctly.
  • The AIS3624DQ can measure accelerations up to ±24g, but it's recommended to operate within the specified range of ±12g for optimal performance and accuracy.
  • The AIS3624DQ output can be filtered using a low-pass filter or a digital filter to reduce noise. STMicroelectronics provides guidelines for filtering in the application note AN4509. Additionally, the device has a built-in 50 Hz notch filter to reduce noise from power line interference.
  • The typical power consumption of the AIS3624DQ is 1.2 mA at 2.5 V supply voltage, but it can vary depending on the operating mode and output data rate.
