Description:The AJM-24 series is a range of fully encapsulated AC-DC power modules. These high performance products feature an extended operating temperature range of -40℃ to +80℃. Universal input voltage 85-264VAC and UL/IEC/EN safety approvals including medical safety and UL 508 listing qualify these power supplies modules for applications in products with worldwide markets EMI Emission EN 55011/32 Class B Approved.
The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, using thermal vias to dissipate heat, and keeping the input and output capacitors close to the module. A heat sink or thermal pad can be added on top of the module for improved thermal management.
To ensure EMC, use a shielded enclosure, keep the module away from high-frequency sources, use a common-mode choke on the input, and add EMI filters on the output. Additionally, follow proper PCB layout and grounding practices, and consider using a metal can or shield around the module.
The derating curve is typically provided by Minmax Technology Co Ltd upon request. It shows the reduction in output power as a function of temperature. As the temperature increases, the output power decreases to prevent overheating. Engineers should consult the derating curve to determine the maximum output power at their specific operating temperature.
Yes, the AJM-24S05 can be used in a redundant or parallel configuration, but it requires careful consideration of the system design, including synchronization, current sharing, and fault detection. Engineers should consult with Minmax Technology Co Ltd or a qualified power supply expert to ensure a reliable and efficient implementation.
The AJM-24S05 is commonly used in industrial control systems, telecommunications, datacom, and medical devices that require a high-reliability, compact, and efficient power supply. It's also suitable for applications with limited airflow or high ambient temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AJM-24S05 Overview

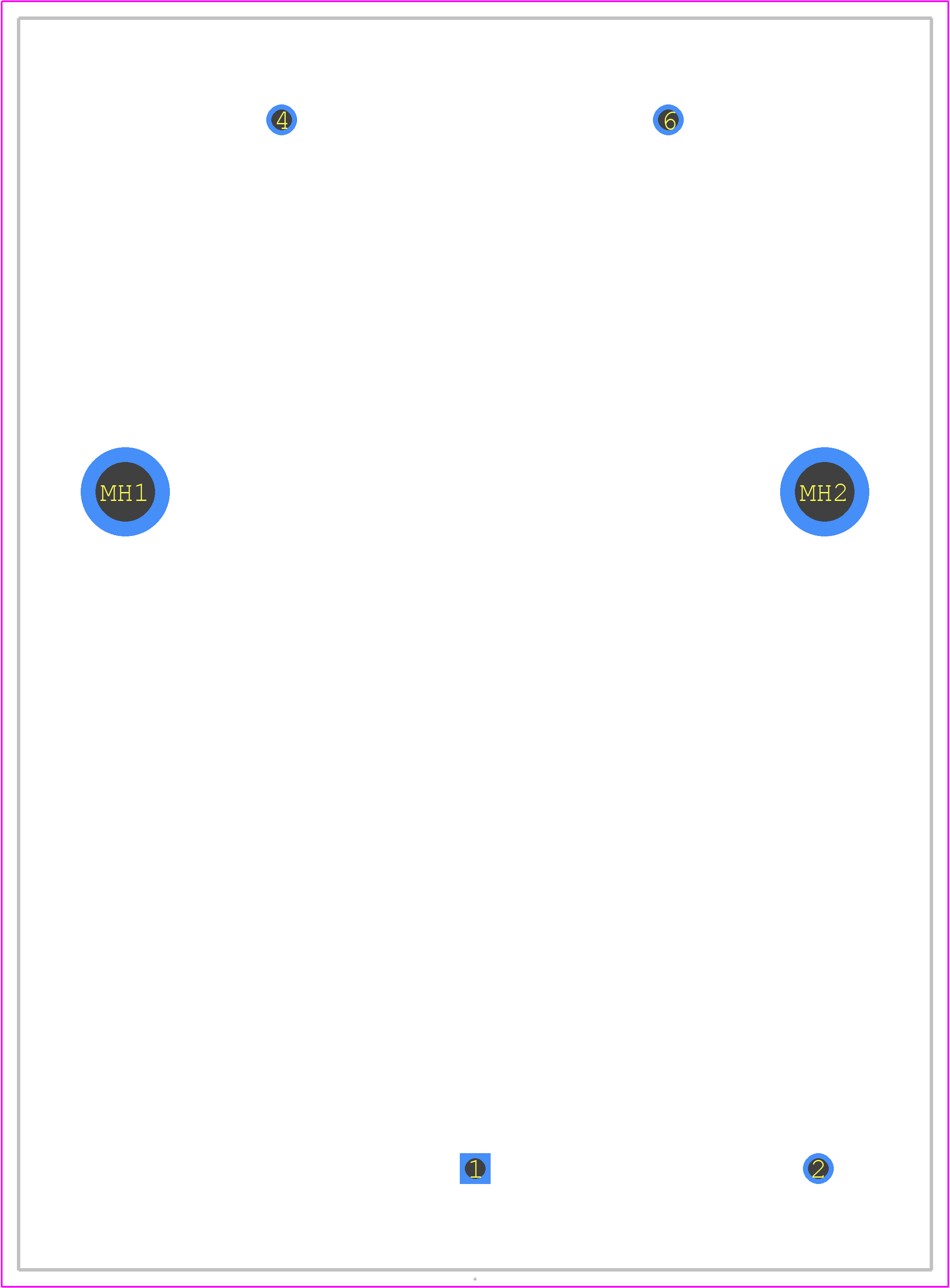

Use the download button to access the AJM-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AJM-2,
or try a keyword search, such as Power Supply Modules
