AK2ADDF1-156.2500T - ABRACON

Description: Standard Clock Oscillators 156.25 MHz LVDS 2.5 x 2.0 x 1.0mm Ultra-Low Jitter Fixed-Frequency Clock Oscillator

Download AK2ADDF1-156.2500T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AK2ADDF1-156.2500T model

Email notifications will be applied after download.

Send part feedback

Symbol

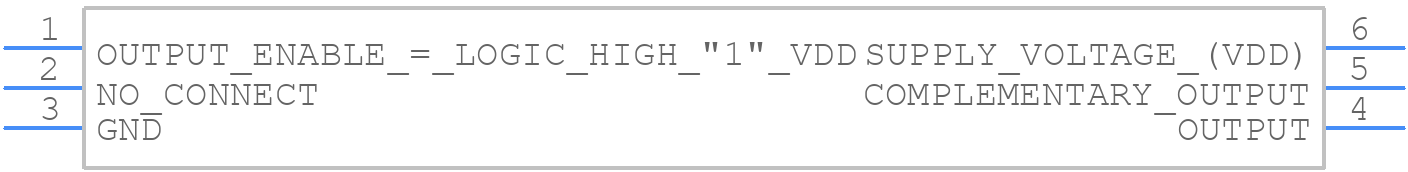

AK2ADDF1-156.2500T - ABRACON - PCB symbol

PCB Footprints

AK2ADDF1-156.2500T - ABRACON PCB footprint - Other - Other - AK2ADDF1-156.2500T-1

3D Models

AK2ADDF1-156.2500T - ABRACON - 3D model - Other - AK2ADDF1-156.2500T-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AK2ADDF1-156.2500T
Part Number AK2ADDF1-156.2500T
Manufacturer ABRACON
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AK2ADDF1-156.2500T-1
Released Date Jul 13, 2023
Last Modified Date Jul 13, 2023 3:29 AM UTC
Pinout / Pin List Click Here (Member Only)

AK2ADDF1-156.2500T Details

Manufacturer Part Number:
AK2ADDF1-156.2500T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
14 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
Fall Time-Max:
0.4 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
156.25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Physical Dimension:
2.5mm x 2.0mm x 1.0mm
Rise Time-Max:
0.4 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.375 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

AK2ADDF1-156.2500T Frequently Asked Questions (FAQs)

The operating temperature range of the AK2ADDF1-156.2500T is -40°C to +85°C.
Yes, the AK2ADDF1-156.2500T is RoHS (Restriction of Hazardous Substances) compliant, meeting the EU's directive for environmentally friendly products.
The recommended drive level for the AK2ADDF1-156.2500T is 1.0 ± 0.5 μW, as specified in the datasheet.
The AK2ADDF1-156.2500T is designed to withstand vibrations up to 20 G, making it suitable for use in high-vibration environments.
The typical start-up time for the AK2ADDF1-156.2500T is 2-10 ms, depending on the specific application and circuit design.
