Abracon recommends following the PCB layout guidelines provided in the application note AN-04, which includes using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
The AK2APAF1-156.2500T is designed to minimize EMI and RFI through its shielded package and internal filtering. However, additional EMI and RFI mitigation techniques, such as shielding, grounding, and filtering, may be necessary depending on the specific application and environment.
The AK2APAF1-156.2500T is rated for operation over a temperature range of -40°C to +85°C, making it suitable for a wide range of industrial and commercial applications.
Yes, the AK2APAF1-156.2500T is designed to withstand high-vibration environments and meets the vibration testing requirements specified in MIL-STD-883, Method 2007. However, it's essential to follow proper mounting and installation procedures to ensure reliable operation.
Abracon recommends following the soldering profile specified in the JEDEC standard J-STD-020, which includes a peak temperature of 260°C and a dwell time of 30 seconds to ensure reliable solder joints and minimize thermal stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AK2APAF1-156.2500T Overview

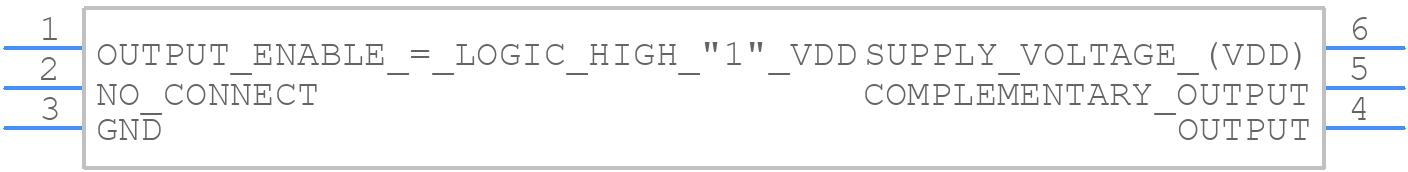

Use the download button to access the AK2APAF1-156.2500T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AK2AP,
or try a keyword search, such as XO
