AK2BDDF1-100.0000T footprint, schematic symbol and 3D model by ABRACON

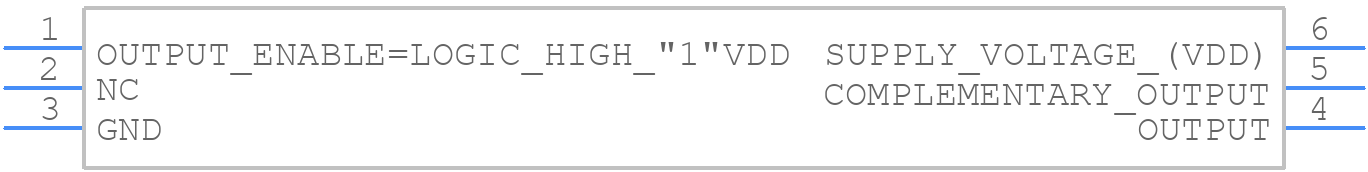

Symbol

PCB Footprints

3D Models

AK2BDDF1-100.0000T Details

Manufacturer Part Number:
AK2BDDF1-100.0000T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 6 PIN
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY AND DIFFERENTIAL OUTPUT
Fall Time-Max:
0.3 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
LCC6,.08X.1,47/35
Physical Dimension:
2.5mm x 2.0mm x 1.0mm
Rise Time-Max:
0.3 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.375 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

Abracon recommends following the recommended layout guidelines in the datasheet, including keeping the crystal oscillator close to the microcontroller, using a ground plane, and minimizing signal trace lengths.
To ensure reliable startup, Abracon recommends applying a power-on reset (POR) signal to the oscillator, and ensuring that the power supply voltage is stable before enabling the oscillator.
The typical power consumption of the AK2BDDF1-100.0000T is around 1-2mA, depending on the operating frequency and load capacitance.
The AK2BDDF1-100.0000T is a standard crystal oscillator that can be used with most microcontrollers. However, it's recommended to check the microcontroller's datasheet to ensure compatibility with the oscillator's frequency, voltage, and load capacitance requirements.
The AK2BDDF1-100.0000T has an operating temperature range of -40°C to +85°C, making it suitable for most industrial and commercial uses.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AK2BDDF1-100.0000T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AK2BD, or try a keyword search, such as XO
